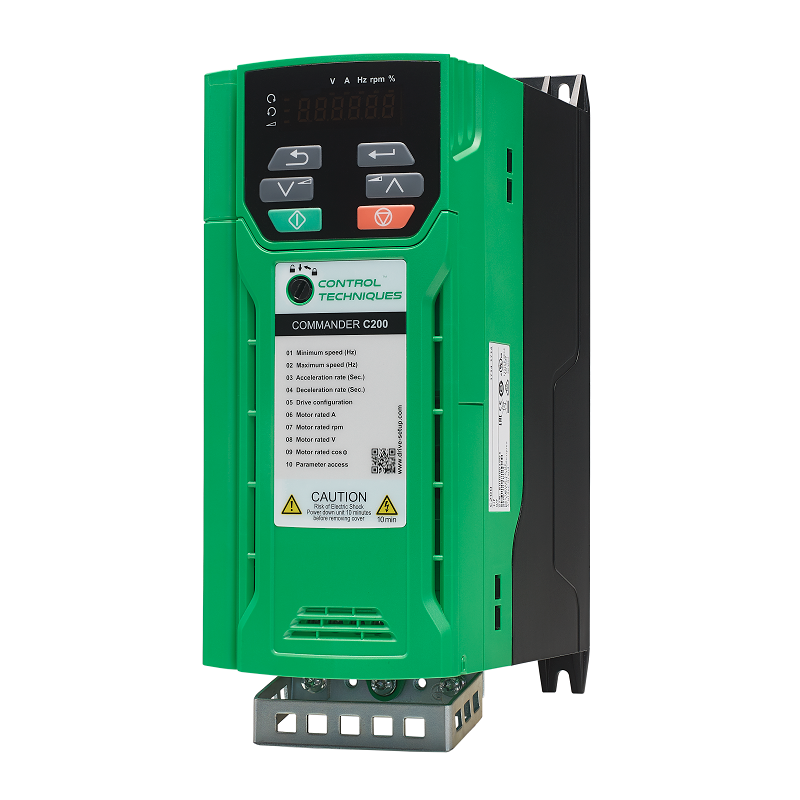

Control Techniques C200-01200017A | Commander C200 Variable Speed Drive | 0.25 kW, 1-Phase 200/240 V
The Control Techniques C200-01200017A is a Commander C200 variable speed drive rated 0.25 kW (0.33 hp), delivering up to 1.7 A of continuous output current from a single-phase 200/240 V AC supply. Control Techniques designed the Commander C series as a simple, compact AC motor speed controller; start-up needs just four parameters.
- 0.25 kW / 0.33 hp on a 1-phase 200/240 V AC supply
- Up to 1.7 A continuous output to the motor
- 0.5–590 Hz output frequency range on the 0.25 kW model
- IP21 enclosure / 137 x 75 x 130 mm / 0.75 kg
- 180% overload headroom for heavy starts on this 0.25 kW unit
- Onboard PLC plus plug-in options for advanced control on the C200-01200017A
- Specifications
- Features
- Downloads
| Part Number | C200-01200017A |
| Brand | Control Techniques |
| Series | Commander C200 |
| Max Continuous Current | 1.7 A |
| Supply | Single-phase 200/240 V AC |
| Supply Frequency | 50/60 Hz |
| Output Frequency Range | 0.5–590 Hz |
| Enclosure | IP21 |
| Dimensions | 137 x 75 x 130 mm (5.4 x 3.0 x 5.1 in) |
| Weight | 0.75 kg (1.65 lb) |
| Motor Shaft Power | 0.25 kW / 0.33 hp |
| Overload | Up to 180% |
| Commissioning | 4 parameters to start |
- Adaptable to your application
- Integrated functional safety
- On-board PLC
- Compact design
- Super quick start-up
- Flexible connectivity
- Worldwide availability and outstanding service
