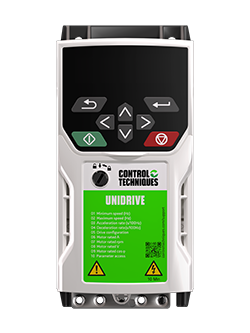

Control Techniques M400-05400270A | Unidrive M400 AC Drive | 11 kW HD / 15 kW ND, 27 A, 3-Phase 380–480 V
Rated 11 kW HD / 15 kW ND and 27 A, the M400-05400270A belongs to the Control Techniques Unidrive M400 range of AC drives for three-phase 380–480 V AC systems. On the M400-05400270A, dual Safe Torque Off inputs come as standard, while the onboard PLC handles sequencing and logic without extra hardware.
- Plain-text, multi-language LCD keypad available as an option for the M400-05400270A
- Single SI slot on this 11/15 kW drive accepts fieldbus, Ethernet or I/O modules
- M400-05400270A AI slot: parameter cloning, 24 V backup, Modbus RTU
- Size and weight: 391 x 143 x 200 mm, 7.4 kg
- Output frequency 0–550 Hz, ambient -20 to 40 °C, M400-05400270A
- Specifications
- Features
- Downloads
| Part Number | M400-05400270A |
| Brand | Control Techniques |
| Series | Unidrive M400 |
| Ambient Temperature | -20 °C to 40 °C (-4 to 104 °F) |
| Safety | Dual Safe Torque Off (STO) inputs |
| Max Continuous Current | 27 A |
| Supply | Three-phase, 380–480 V AC |
| Supply Frequency | 45–66 Hz |
| Output Frequency Range | 0–550 Hz |
| Dimensions | 391 x 143 x 200 mm (15.39 x 5.63 x 7.87 in) |
| Weight | 7.4 kg (16.3 lb) |
| Power Rating | 11 kW HD / 15 kW ND |
| Motor Shaft Power (hp) | 15 hp |
| Control | Integrated PLC; rotor flux control for induction motors |
• Ambient temperature ranges between -20°C and 40°C
• Compact size
• EMC filter to limit electromagnetic interference
• Enhanced up-time and system flexibility
• Improved throughput with advanced open loop motor control algorithms
• Integrated PLC gives more control
• Panel mount inverter drive
• PROFINET, PROFIBUS, ModBus, CANopen, DeviceNet, EtherCAT and Ethernet field bus communication type
• Quick diagnosis system
• Reliability
• Rotor flux control for maximum stability and control
• 3-phase input and 3-phase output terminals
