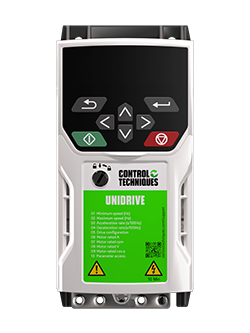

Control Techniques M400-05400300A | Unidrive M400 AC Drive | 15 kW HD / 15 kW ND, 31 A, 3-Phase 380–480 V
For three-phase 380–480 V AC supplies, M400-05400300A provides 15 kW HD / 15 kW ND (20 hp) of Unidrive M400 speed control with a 31 A continuous current rating. This 15/15 kW drive carries an integrated PLC for sequencing and logic, plus dual STO inputs for machine safety functions.
- Supports an optional backlit LCD keypad in several languages – 15/15 kW model
- Fieldbus choices via the SI slot of the M400-05400300A include PROFINET, PROFIBUS, Modbus, CANopen, DeviceNet and EtherCAT
- AI option slot for parameter cloning, 24 V backup and Modbus RTU at 15/15 kW
- 391 x 143 x 200 mm / 7.4 kg (M400-05400300A)
- Ambient range -20 °C to 40 °C and 0–550 Hz output for the 15/15 kW rating
- Specifications
- Features
- Downloads
| Part Number | M400-05400300A |
| Brand | Control Techniques |
| Series | Unidrive M400 |
| Ambient Temperature | -20 °C to 40 °C (-4 to 104 °F) |
| Safety | Dual Safe Torque Off (STO) inputs |
| Max Continuous Current | 31 A |
| Supply | Three-phase, 380–480 V AC |
| Supply Frequency | 45–66 Hz |
| Output Frequency Range | 0–550 Hz |
| Dimensions | 391 x 143 x 200 mm (15.39 x 5.63 x 7.87 in) |
| Weight | 7.4 kg (16.3 lb) |
| Power Rating | 15 kW HD / 15 kW ND |
| Motor Shaft Power (hp) | 20 hp |
| Control | Integrated PLC; rotor flux control for induction motors |
• Ambient temperature ranges between -20°C and 40°C
• Compact size
• EMC filter to limit electromagnetic interference
• Enhanced up-time and system flexibility
• Improved throughput with advanced open loop motor control algorithms
• Integrated PLC gives more control
• Panel mount inverter drive
• PROFINET, PROFIBUS, ModBus, CANopen, DeviceNet, EtherCAT and Ethernet field bus communication type
• Quick diagnosis system
• Reliability
• Rotor flux control for maximum stability and control
• 3-phase input and 3-phase output terminals
