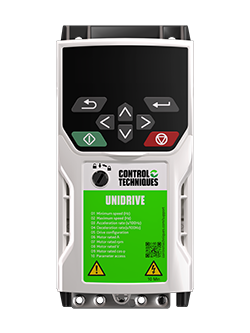

Control Techniques M400-06400470A | Unidrive M400 AC Drive | 22 kW HD / 30 kW ND, 63 A, 3-Phase 380–480 V
Unidrive M400 drive M400-06400470A handles 22 kW HD / 30 kW ND (30 hp) motor loads at up to 63 A continuous, fed from a three-phase 380–480 V AC supply. Machine logic can run on the M400-06400470A itself via its integrated PLC, and two Safe Torque Off inputs are built in.
- Supports an optional backlit LCD keypad in several languages – 22/30 kW model
- Fieldbus choices via the SI slot of the M400-06400470A include PROFINET, PROFIBUS, Modbus, CANopen, DeviceNet and EtherCAT
- M400-06400470A AI slot: parameter cloning, 24 V backup, Modbus RTU
- 391 x 210 x 227 mm / 14 kg (M400-06400470A)
- Output frequency 0–550 Hz, ambient -20 to 40 °C, M400-06400470A
- Specifications
- Features
- Downloads
| Part Number | M400-06400470A |
| Brand | Control Techniques |
| Series | Unidrive M400 |
| Ambient Temperature | -20 °C to 40 °C (-4 to 104 °F) |
| Safety | Dual Safe Torque Off (STO) inputs |
| Max Continuous Current | 63 A |
| Supply | Three-phase, 380–480 V AC |
| Supply Frequency | 45–66 Hz |
| Output Frequency Range | 0–550 Hz |
| Dimensions | 391 x 210 x 227 mm (15.39 x 8.27 x 8.94 in) |
| Weight | 14 kg (30.9 lb) |
| Power Rating | 22 kW HD / 30 kW ND |
| Motor Shaft Power (hp) | 30 hp |
| Control | Integrated PLC; rotor flux control for induction motors |
• Ambient temperature ranges between -20°C and 40°C
• Compact size
• EMC filter to limit electromagnetic interference
• Enhanced up-time and system flexibility
• Improved throughput with advanced open loop motor control algorithms
• Integrated PLC gives more control
• Panel mount inverter drive
• PROFINET, PROFIBUS, ModBus, CANopen, DeviceNet, EtherCAT and Ethernet field bus communication type
• Quick diagnosis system
• Reliability
• Rotor flux control for maximum stability and control
• 3-phase input and 3-phase output terminals
