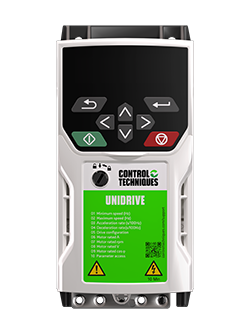

Control Techniques M400-07401000A | Unidrive M400 AC Drive | 45 kW HD / 55 kW ND, 112 A, 3-Phase 380–480 V
M400-07401000A is a 45 kW HD / 55 kW ND Unidrive M400 AC drive from Control Techniques, delivering 112 A continuously from a 380–480 V AC three-phase supply. On the M400-07401000A, dual Safe Torque Off inputs come as standard, while the onboard PLC handles sequencing and logic without extra hardware.
- Supports an optional backlit LCD keypad in several languages – 45/55 kW model
- Fieldbus choices via the SI slot of the M400-07401000A include PROFINET, PROFIBUS, Modbus, CANopen, DeviceNet and EtherCAT
- AI option slot for parameter cloning, 24 V backup and Modbus RTU at 45/55 kW
- 557 x 270 x 280 mm / 28 kg (M400-07401000A)
- Ambient range -20 °C to 40 °C and 0–550 Hz output for the 45/55 kW rating
- Specifications
- Features
- Downloads
| Part Number | M400-07401000A |
| Brand | Control Techniques |
| Series | Unidrive M400 |
| Ambient Temperature | -20 °C to 40 °C (-4 to 104 °F) |
| Safety | Dual Safe Torque Off (STO) inputs |
| Max Continuous Current | 112 A |
| Supply | Three-phase, 380–480 V AC |
| Supply Frequency | 45–66 Hz |
| Output Frequency Range | 0–550 Hz |
| Dimensions | 557 x 270 x 280 mm (21.93 x 10.63 x 11.02 in) |
| Weight | 28 kg (61.7 lb) |
| Power Rating | 45 kW HD / 55 kW ND |
| Motor Shaft Power (hp) | 60 hp |
| Control | Integrated PLC; rotor flux control for induction motors |
• Ambient temperature ranges between -20°C and 40°C
• Compact size
• EMC filter to limit electromagnetic interference
• Enhanced up-time and system flexibility
• Improved throughput with advanced open loop motor control algorithms
• Integrated PLC gives more control
• Panel mount inverter drive
• PROFINET, PROFIBUS, ModBus, CANopen, DeviceNet, EtherCAT and Ethernet field bus communication type
• Quick diagnosis system
• Reliability
• Rotor flux control for maximum stability and control
• 3-phase input and 3-phase output terminals
