Control Techniques M400-08401340A-55HD / 75NDkw, Three Phase,380-480V AC, Unidrive M400 Variable Speed Drive
Genuine Control Techniques M400-08401340A Unidrive M400 variable-speed drive, in stock at General Tech Services LLC, UAE. Motor Shaft Power: 55 (HD) / 75 (ND) kW; Voltage: 380-480VAC; Phase: Three-phase. Free UAE shipping.
Request a quote in under a minute - call +971 6 5436933.
Part No. M400-08401340A | 55 (HD) / 75 (ND) kW

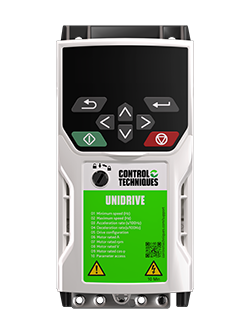

Control Techniques' Unidrive M400 variable frequency AC drive (VFD) helps minimise downtime with an optional plain-text, multi-language backlit LCD keypad for rapid setup and clear diagnostics. Its integrated PLC executes a substantial range of sequencing and logic programs, while the drive provides extensive onboard I/O with dual Safe Torque Off (STO) inputs. A single SI option slot supports fieldbus, Ethernet or expanded I/O, while an AI option slot supports parameter cloning, 24V backup and Modbus RTU. An optional CI-485-ADAPTOR provides additional Modbus RTU communications in place of the keypad.
Ready to order the M400-08401340A? Speak to our team. Call +971 6 5436933
Key Benefits
- Optional multi-language backlit LCD keypad for faster setup and diagnostics
- Dual Safe Torque Off (STO) inputs built in as standard
- Wide range of fieldbus options: PROFINET, PROFIBUS, Modbus, CANopen, DeviceNet, EtherCAT, and Ethernet
- Integrated PLC for onboard sequencing and logic without additional hardware
- Compact IP21 panel-mount housing for space-constrained enclosures
Who This Product Is Best For
- Panel builders looking for a compact IP21 panel-mount drive with a multi-language diagnostic keypad
- OEMs requiring dual Safe Torque Off (STO) as standard for machine safety compliance
- Integrators needing flexible fieldbus options, including PROFINET, PROFIBUS, Modbus, CANopen, DeviceNet, EtherCAT, and Ethernet
How to Specify & Commission It
1. Confirm the M400-08401340A nameplate rating matches your motor's voltage, current and power requirements.
2. Mount the drive in a suitably ventilated panel or enclosure per the manufacturer's installation guide.
3. Wire the supply, motor and control/communication terminals, then power up and configure via the keypad, app or PC tool as applicable.
4. Commission the drive against your motor and process, then verify protection settings before handing the system over.
Frequently Asked Questions
What makes the M400-08401340A easier to commission than a basic drive?
An optional plain-text, multi-language backlit LCD keypad provides clear setup guidance and diagnostic information, helping minimise downtime during commissioning and fault-finding.
Does the M400 include safety functions as standard?
Yes, dual Safe Torque Off (STO) inputs are built in as standard.
Which fieldbus protocols does the M400 support?
The M400 supports PROFINET, PROFIBUS, Modbus, CANopen, DeviceNet, EtherCAT, and Ethernet via the SI option slot.
Can the M400 run PLC logic on the drive itself?
Yes, the M400 has an integrated PLC capable of executing a substantial range of sequencing and logic programs, reducing the need for a separate controller.
What's the ambient temperature range for this drive?
The ambient temperature range is -20°C to 40°C.
Should I choose the M400-08401340A or the M400-07401000A?
Compare the rated current, power, voltage and motor requirements against your motor's nameplate. The M400-07401000A differs in rated current and power from the M400-08401340A. Contact our team to confirm the correct match for your application.
For pricing or to place an order, contact General Tech Services LLC. Call +971 6 5436933.
