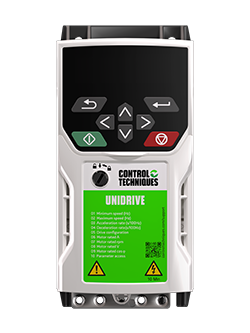

Control Techniques M400-08401570A | Unidrive M400 AC Drive | 75 kW HD / 90 kW ND, 184 A, 3-Phase 380–480 V
Unidrive M400 drive M400-08401570A handles 75 kW HD / 90 kW ND (100 hp) motor loads at up to 184 A continuous, fed from a three-phase 380–480 V AC supply. This 75/90 kW drive carries an integrated PLC for sequencing and logic, plus dual STO inputs for machine safety functions.
- Plain-text, multi-language LCD keypad available as an option for the M400-08401570A
- Single SI slot on this 75/90 kW drive accepts fieldbus, Ethernet or I/O modules
- AI option slot for parameter cloning, 24 V backup and Modbus RTU at 75/90 kW
- Size and weight: 804 x 310 x 290 mm, 52 kg
- Ambient range -20 °C to 40 °C and 0–550 Hz output for the 75/90 kW rating
- Specifications
- Features
- Downloads
| Part Number | M400-08401570A |
| Brand | Control Techniques |
| Series | Unidrive M400 |
| Ambient Temperature | -20 °C to 40 °C (-4 to 104 °F) |
| Safety | Dual Safe Torque Off (STO) inputs |
| Max Continuous Current | 184 A |
| Supply | Three-phase, 380–480 V AC |
| Supply Frequency | 45–66 Hz |
| Output Frequency Range | 0–550 Hz |
| Dimensions | 804 x 310 x 290 mm (31.65 x 12.21 x 11.42 in) |
| Weight | 52 kg (114.6 lb) |
| Power Rating | 75 kW HD / 90 kW ND |
| Motor Shaft Power (hp) | 100 hp |
| Control | Integrated PLC; rotor flux control for induction motors |
• Ambient temperature ranges between -20°C and 40°C
• Compact size
• EMC filter to limit electromagnetic interference
• Enhanced up-time and system flexibility
• Improved throughput with advanced open loop motor control algorithms
• Integrated PLC gives more control
• Panel mount inverter drive
• PROFINET, PROFIBUS, ModBus, CANopen, DeviceNet, EtherCAT and Ethernet field bus communication type
• Quick diagnosis system
• Reliability
• Rotor flux control for maximum stability and control
• 3-phase input and 3-phase output terminals
