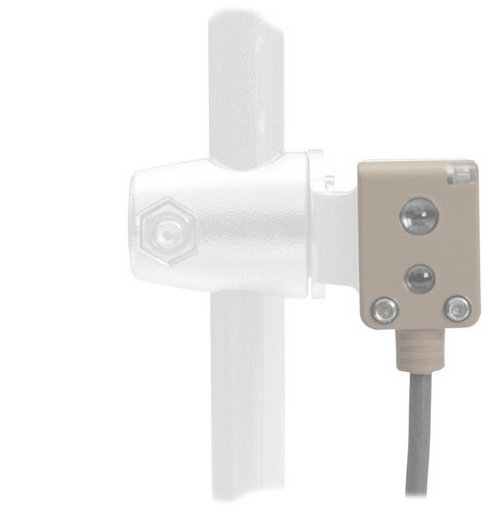

ifm O7H201 - O7H-DPKG/0,2m/AS | Photoelectric Sensor | 10-30 DC V
The ifm O7H201 - O7H-DPKG/0,2m/AS is a photoelectric sensor with electrical design PNP, operating voltage 10-30 DC V and housing rectangular. ifm lists particularly small housing for use where space is restricted, for the reliable position detection in feeding and handling technology and small light spot and narrow light cone for detecting of small objects among its features.
- Ambient temperature: 25 °C to 60 °C
- Current consumption: 20; ((24 V))
- Electrical design: PNP
- Housing: rectangular
- Operating voltage: 10-30 DC V
- Protection class: III
- Reverse polarity protection: yes
- Short-circuit protection: yes
- Specifications
- Features
- Downloads
| Ambient Temperature | -25 °C to 60 °C (-13 to 140 °F) |
| Current Consumption [mA] | 20; ((24 V)) |
| Electrical Design | PNP |
| Housing | rectangular |
| Operating Voltage [V] | 10-30 DC V |
| Reverse Polarity Protection | yes |
| Short-circuit Protection | yes |
| Switching Frequency DC [Hz] | 750 Hz |
| Protection Class | III |
- Particularly small housing for use where space is restricted
- For the reliable position detection in feeding and handling technology
- Small light spot and narrow light cone for detecting of small objects
- Precise background suppression
- Visible red light for simple alignment
