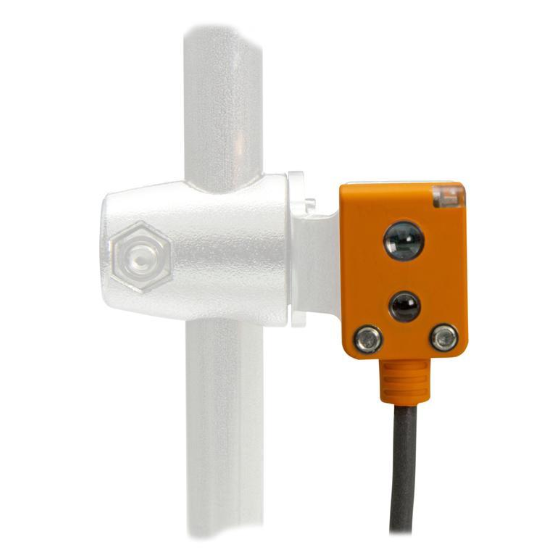

ifm O7H205 - O7H-DPKG/0,2m/AS | Photoelectric Sensor | dark-on mode, 10-30 DC V
The ifm O7H205 - O7H-DPKG/0,2m/AS is a photoelectric sensor with output function dark-on mode, electrical design PNP and operating voltage 10-30 DC V. ifm lists particularly small housing for use where space is restricted, for the reliable position detection in feeding and handling technology and small light spot and narrow light cone for detecting of small objects among its features.
- Ambient temperature: 25 °C to 60 °C
- Current consumption: 20; ((24 V))
- Electrical design: PNP
- Housing: rectangular
- Operating voltage: 10-30 DC V
- Output function: dark-on mode
- Protection class: III
- Reverse polarity protection: yes
- Specifications
- Features
- Downloads
| Ambient Temperature | -25 °C to 60 °C (-13 to 140 °F) |
| Current Consumption [mA] | 20; ((24 V)) |
| Electrical Design | PNP |
| Housing | rectangular |
| Operating Voltage [V] | 10-30 DC V |
| Output Function | dark-on mode |
| Reverse Polarity Protection | yes |
| Short-circuit Protection | yes |
| Switching Frequency DC [Hz] | 750 Hz |
| Protection Class | III |
- Particularly small housing for use where space is restricted
- For the reliable position detection in feeding and handling technology
- Small light spot and narrow light cone for detecting of small objects
- Precise background suppression
- Visible red light for simple alignment
