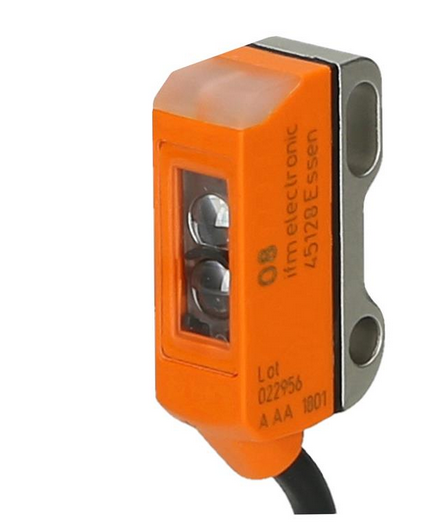

ifm O8H200 - O8H-HPKG/IO-Link/2,0M | Photoelectric Sensor | light-on mode, 10-30 DC V
The ifm O8H200 - O8H-HPKG/IO-Link/2,0M is a photoelectric sensor with output function light-on mode, electrical design PNP and operating voltage 10-30 DC V. ifm lists color-independent distance measurement even of very flat or reflective objects, easy parameter setting and measured value output to the nearest millimeter via IO-Link and compact light spot for precise detection even at longer distances among its features.
- Ambient temperature: 25 °C to 60 °C
- Current consumption: 20; ((24 V))
- Electrical design: PNP
- Housing: rectangular
- Operating voltage: 10-30 DC V
- Output function: light-on mode
- Protection class: III
- Reverse polarity protection: yes
- Specifications
- Features
- Downloads
| Ambient Temperature | -25 °C to 60 °C (-13 to 140 °F) |
| Current Consumption [mA] | 20; ((24 V)) |
| Electrical Design | PNP |
| Housing | rectangular |
| Operating Voltage [V] | 10-30 DC V |
| Output Function | light-on mode |
| Reverse Polarity Protection | yes |
| Short-circuit Protection | yes |
| Switching Frequency DC [Hz] | 1000 Hz |
| Protection Class | III |
- Color-independent distance measurement even of very flat or reflective objects
- Easy parameter setting and measured value output to the nearest millimeter via IO-Link
- Compact light spot for precise detection even at longer distances
- Extremely reliable background suppression
- Installation within seconds, space-saving design
