Dwyer 104.8 | Portable Well-Type Manometer | 0-8" w.c., .10" Divisions, 9" Scale
Reading 0-8 in w.c. with .10 in minor divisions, the Dwyer 104.8 is a vertical well-type Durablock portable manometer with a 9 in scale. Use it to measure static pressure, vacuum or differential pressure; a metal carrying case is included.
- Range 0-8 in w.c., graduated in .10 in minor divisions
- 9 in scale length on the 104.8
- 104.8 uses well-type (vertical) construction in solid plastic
- Metal carrying case supplied with the 104.8
- Stated accuracy of the 104.8: 2%
- Acrylic bore and well machined to close tolerances (104.8)
- Specifications
- Features
- Downloads
| Part Number | 104.8 |
| Brand | Dwyer |
| Series | 100 Durablock |
| Type | Well-type |
| Range | 0-8" w.c. |
| Accuracy | 2% |
| Weight | 4 lb |
| Scale Length | 9" |
| Measurement | Differential, vacuum |
| Minor Divisions | .10" |
| Carrying Case | Metal |

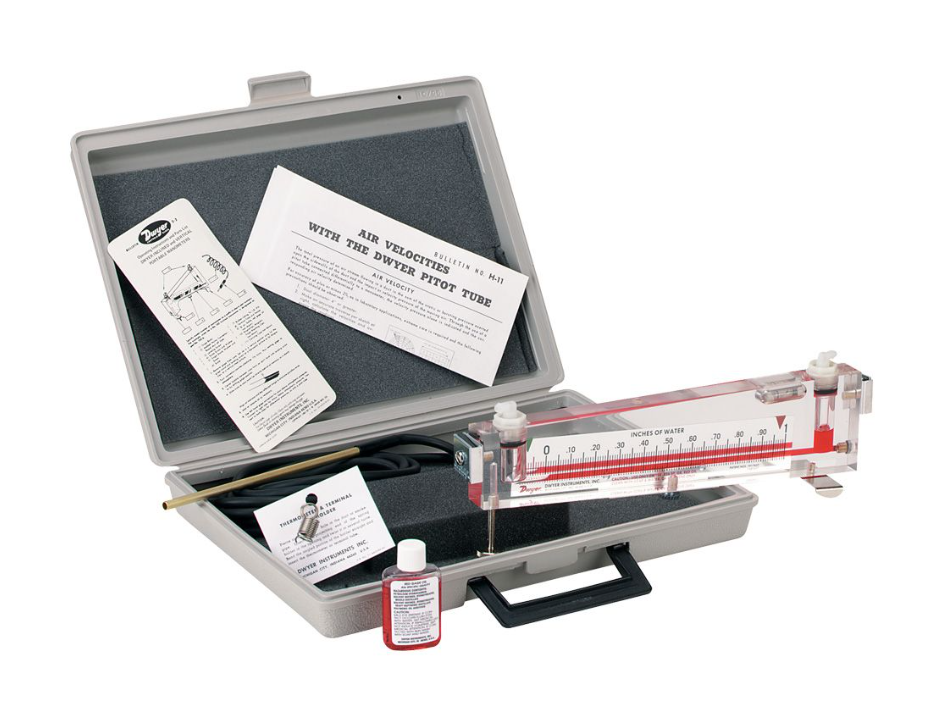

- Portable solid plastic gauge with a metal carrying box, a range of 0-8" w.c., a minor division of.10, and a scale of 9".
- The 1" Thick Acrylic Plastic Body is a robust, nearly indestructible block that is not susceptible to distortion.
- The precision of the drilled bore, which is accurate to ±.0002", is unaffected by bends or curves and doesn't need to be adjusted due to distortion.
- High wetability gauge oil is chosen to create a well-shaped, constant meniscus that is easy to read.
- Easy zeroing is made simple with the thumbscrew locking adjustable reflective chrome finish scales.
- To ensure optimal precision and consistency in parallax-free reading, just line the meniscus with its reflected image in the polished metal scale.
- With reference to an integrated sensitive ground glass bubble level, the screw type leveling adjustment for inclined style gauges offers quick and precise leveling.
- Fully equipped with extras and a carrying case made of plastic.
