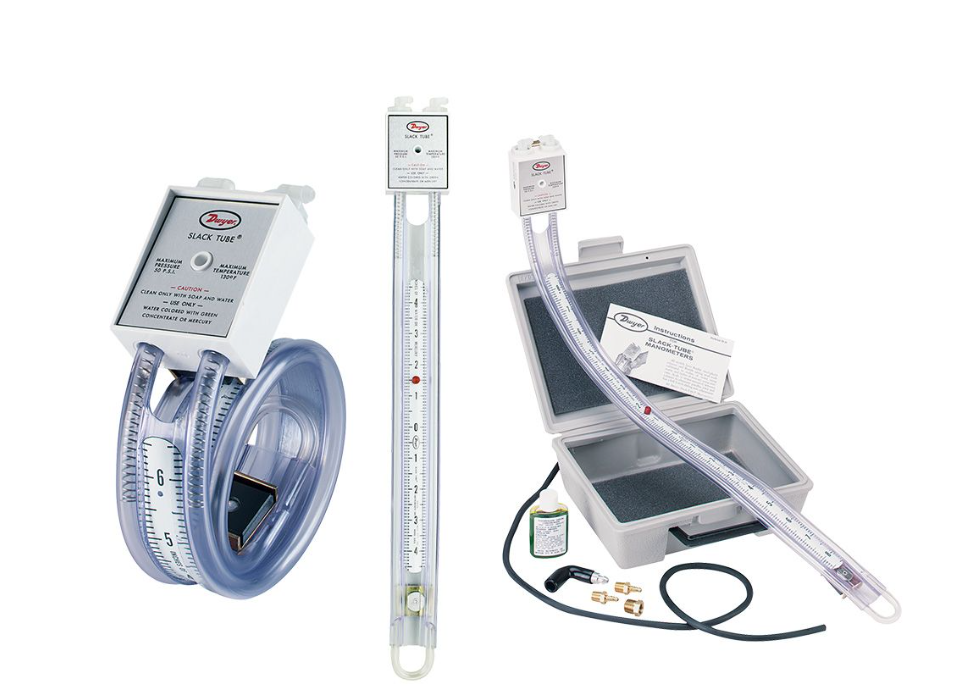

Dwyer 1211-100 | Slack Tube Manometer | cm w.c. Scale, 18-1/2 oz Fill
The Dwyer 1211-100 Slack Tube manometer has a scale in centimetres of water and needs 18-1/2 oz of water or mercury as the indicating fluid. The listing notes it for low pressures in filters, pipelines and ducts.
- 1211-100 scale graduated in cm of water
- Requires 18-1/2 oz of water or mercury
- Series 1211 models such as the 1211-100 span 4-0-4 to 60-0-60 in ranges
- The 1211-100 reads differential pressure and vacuum
- 1211-100 rolls up compactly for carrying between sites
- Designed to match the precision of laboratory U-gauges (1211-100)
- Specifications
- Features
- Downloads
| Part Number | 1211-100 |
| Brand | Dwyer |
| Series | 1211 |
| Measurement | Differential, vacuum |
| Sensor Type | Slack Tube |
| Scale Units | cm H2O |
| Fill Fluid | 18-1/2 oz water or mercury |
- Manometer, 18 1/2 oz water or mercury required, range 50-0-50.
- Rolls up for convenient carrying and storing.
- Overrange pressure safety traps to stop fluid loss from pressure surges or overrange pressures.
