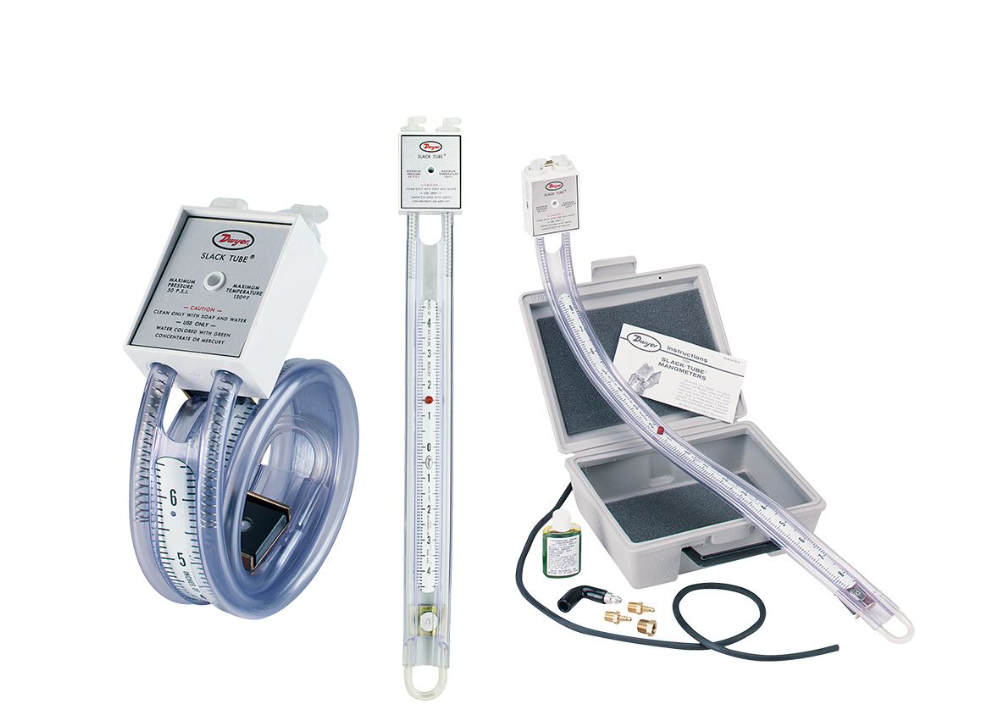

Dwyer Instruments 1211-24 | Manometer | Range 12-0-12 | 12-1/2 oz water or mercury required
Dwyer 1211–24 An very trustworthy and precise tool for measuring pressure is the Slack Tube® Manometer. It performs exceptionally well at giving accurate readings for a variety of applications thanks to its sturdy design and straightforward operation. It provides a handy and portable solution and is perfect for keeping an eye on the fluid and gas pressures in HVAC systems.
The precision of the finest laboratory "U" gauges is matched by the Series 1211 Slack Tube Manometer, which rolls up neatly for portability. The pressure readings range covered by these manometers is from 4-0-4 inches to 60-0-60 inches. While Dwyer Slack Tube Manometers are built to resist rigorous use and roll up compactly for ease of transport, they are just as accurate as the best laboratory "U" gauges.

Free UAE shipping available
- Specifications
- Features
- Downloads
Measurement method | Differential, Vaccum |
Measuring Units | inch H2O, inch Hg |
PRESSURE | Max: 12 IN of H2O |
Range | 12 - 0 - 12 Inches of Water |
Sensor Type | Slack Tube |
Series | 1211/1212 Slack Tube® Manometers |
Type | Manometer |
Weight | 12.5 OUNCES (0.781 LBS) |
- Manometer, 12-1/2 oz water or mercury, range 12-0-12, needed.
- Rolls up for convenient carrying and storing.
- Overrange pressure safety traps to stop fluid loss from pressure surges or overrange pressures.
