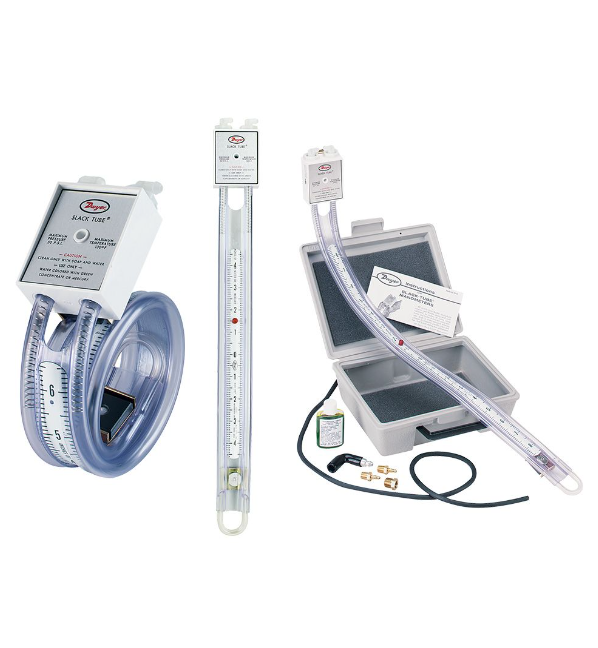

Dwyer 1211-30 | Slack Tube Manometer | 15-0-15" w.c., 15 oz Fill
Dwyer 1211-30: a 15-0-15 in w.c. range on a Series 1211 Slack Tube manometer that takes 15 oz of water or mercury.
- 15-0-15 in w.c. range, maximum 15 in H2O
- Requires 15 oz of water or mercury
- Series 1211 models such as the 1211-30 span 4-0-4 to 60-0-60 in ranges
- The 1211-30 reads differential pressure and vacuum
- Compact roll-up design makes the 1211-30 easy to carry
- Designed to match the precision of laboratory U-gauges (1211-30)
- Specifications
- Features
- Downloads
| Part Number | 1211-30 |
| Brand | Dwyer |
| Series | 1211 |
| Range | 15-0-15" w.c. |
| Maximum Pressure | 15 in H2O |
| Measuring Units | inch H2O, inch Hg |
| Measurement | Differential, vacuum |
| Sensor Type | Slack Tube |
| Fill Fluid | 15 oz water or mercury |
- Manometer, 15-0-15 range; 15 ounces of water or mercury needed.
- Rolls up for convenient carrying and storage.
- Overrange pressure safety traps to stop fluid loss from pressure spikes or overrange pressures.
