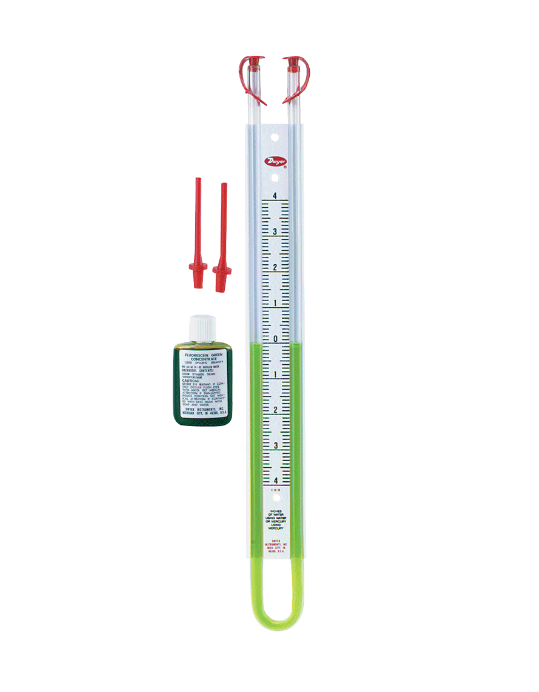

Dwyer 1221-12-D | Flex-Tube U-Tube Manometer | 6-0-6" w.c.
The Dwyer 1221-12-D is a Series 1221 Flex-Tube U-tube manometer with a 6-0-6 in w.c. scale for positive, negative and differential pressure.
- 6-0-6 in w.c. range on the 1221-12-D; maximum operating pressure 6 in H2O
- 1221-12-D pairs all-plastic construction with plain U-tube precision
- Columns of the 1221-12-D use flexible, shatter-proof 0.375 in O.D. clear butyrate tubing
- 1221-12-D columns are accessible for cleaning
- Column alignment on the 1221-12-D is held by an extruded polystyrene scale
- Black silkscreened graduations on a white scale, with a white channel behind the 1221-12-D indicating tube
- Specifications
- Features
- Downloads
| Part Number | 1221-12-D |
| Brand | Dwyer |
| Series | 1221 Flex-Tube |
| Type | U-tube manometer |
| Range | 6-0-6" w.c. |
| Tubing | 0.375" O.D. butyrate |
| Scale Material | High-impact polystyrene |
| Maximum Operating Pressure | 6 in H2O |
| Measuring Units | inch H2O |
- U-Tube Manometer Flex-Tube, 6-0-6" w.c.
- Simplest and least expensive basic U-gage.
- A trustworthy U-tube manometer that delivers precise, highly visible readings even under harsh conditions.
- To be used with red gage fluid, mercury, or water.
- Dwyer® Part No. A-363, a scale clamp bar (standard on Series 1222 and available as an additional for Series 1221), is advised for mercury-filled manometers.
- Each manometer comes with a set of vinyl tube connectors that don't kink and a pair of carrying plugs.
