Dwyer Instruments 1221-24-W/M | U-tube manometer | Range 12-0-12" w.c. - generaltechuae

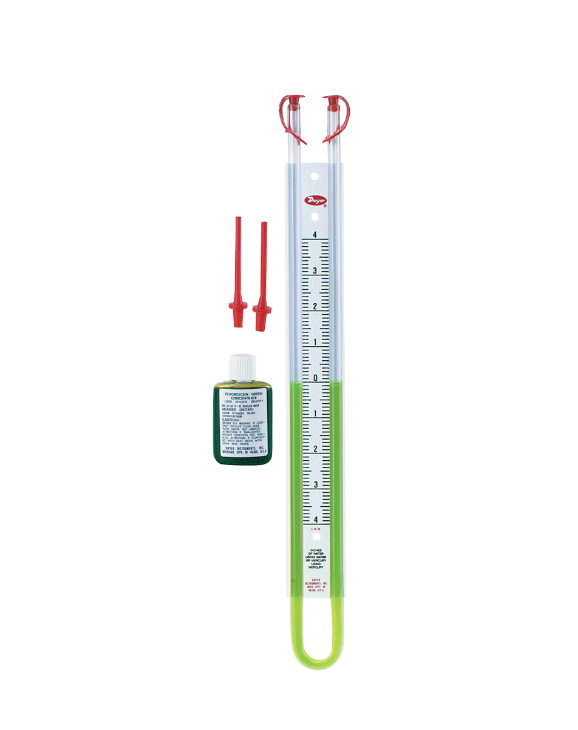

Dwyer 1221-24-W/M | Flex-Tube U-Tube Manometer | 12-0-12" w.c., 13.4 oz Fill

Part Number : 1221-24-W/M

Dwyer 1221-24-W/M: a Series 1221 Flex-Tube U-tube manometer covering 12-0-12 in w.c., for measuring positive, negative and differential pressures. Fill quantity for the 1221-24-W/M is 13.4 oz of water or mercury.

  • 12-0-12 in w.c. range on the 1221-24-W/M; maximum operating pressure 12 in H2O
  • 1221-24-W/M fluid charge: 13.4 oz of water or mercury
  • Maximum pressure rating of 100 psi on the 1221-24-W/M
  • The 1221-24-W/M uses clear 0.375 in O.D. flexible butyrate tubing for its columns
  • Tubes on the 1221-24-W/M are easy to reach for cleaning
  • Extruded high-impact polystyrene scale keeps the 1221-24-W/M columns aligned
