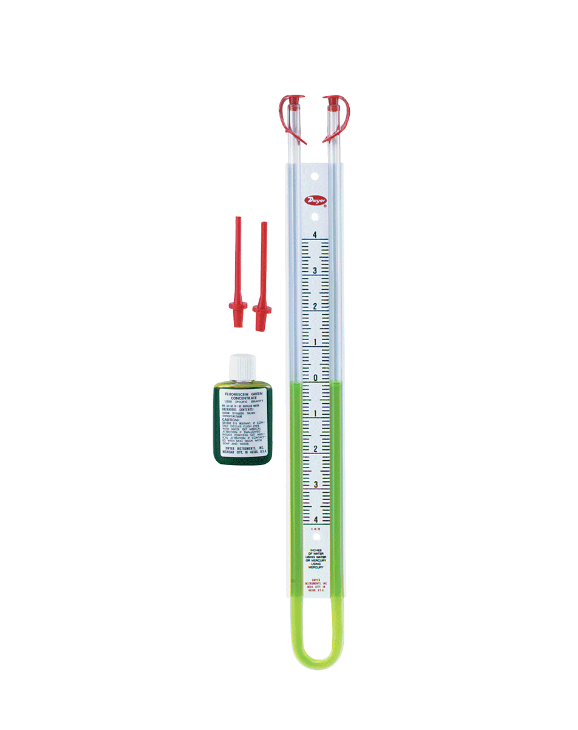

Dwyer 1221-8-W/M | Flex-Tube U-Tube Manometer | 4-0-4" w.c., 6.3 oz Fill
Scaled 4-0-4 in w.c., the Dwyer 1221-8-W/M belongs to the Series 1221 Flex-Tube U-tube range and reads positive, negative or differential pressure. A 6.3 oz charge of water or mercury is needed for the 1221-8-W/M.
- 4-0-4 in w.c. range on the 1221-8-W/M; maximum operating pressure 4 in H2O
- 1221-8-W/M fluid charge: 6.3 oz of water or mercury
- Maximum pressure rating of 100 psi on the 1221-8-W/M
- The 1221-8-W/M uses clear 0.375 in O.D. flexible butyrate tubing for its columns
- Tubes on the 1221-8-W/M are easy to reach for cleaning
- 1221-8-W/M scale is extruded high-impact polystyrene to hold column alignment
- Specifications
- Features
- Downloads
| Part Number | 1221-8-W/M |
| Brand | Dwyer |
| Series | 1221 Flex-Tube |
| Type | U-tube manometer |
| Range | 4-0-4" w.c. |
| Tubing | 0.375" O.D. butyrate |
| Scale Material | High-impact polystyrene |
| Maximum Operating Pressure | 4 in H2O |
| Fluid | 6.3 oz water or mercury |
| Pressure Rating | 100 psi max |
- Our most affordable, basic U-gage. a trustworthy U-tube manometer with good visibility and durability that yields precise readings.
- For use with red gage fluid, mercury, or water. Dwyer® Part No. A-363, a scale clamp bar (standard on Series 1222 and available as an additional for Series 1221), is advised for mercury-filled manometers.
- Each manometer comes with a set of vinyl tube connectors that don't kink and a pair of carrying plugs.
- Static pressure in ducts.
- Laboratories for calibration.
- Monitoring of filters.
