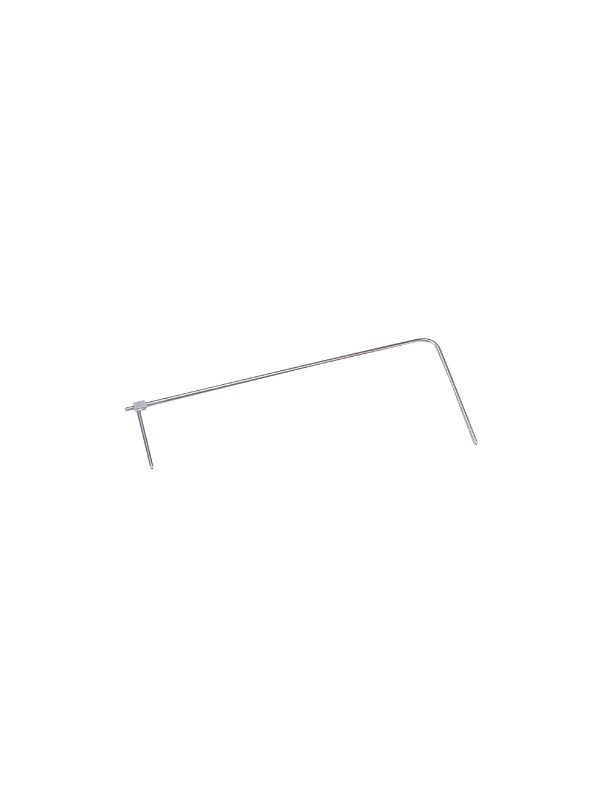

Dwyer 160-24 | Stainless Steel Pitot Tube | 24-5/8" Insertion, 5/16" Dia.
With a 24-5/8" insertion length and 5/16" diameter, the Dwyer 160-24 is a stainless steel Pitot tube for ducts of at least 10".
- 24-5/8" insertion length, 5/16" tube diameter
- Permanently etched depth markings over the 24-5/8" length
- Sensing tube and static port run parallel, making the 160-24 easy to line up with airflow
- Corrosion-resistant stainless steel, rated to 1500 °F (160-24)
- Approvals listed for the 160-24: Standards CE, ASHRAE, RoHS
- Specifications
- Features
- Downloads
| Part Number | 160-24 |
| Brand | Dwyer |
| Type | Pitot Tube |
| Approvals | Standards CE, ASHRAE, RoHS |
| Insertion Length | 24-5/8" |
| Material | Stainless steel |
| Maximum Operating Temperature | 1500 °F |
| Tube Diameter | 5/16" |
| Minimum Duct Diameter | 10" |
- Minimal sensitivity to 15 degrees of misalignment.
- The ASHRAE tip design eliminates the need for calibration.
- For leak-proof performance, use connections with silver solder.
- Versions with a 1500°F (815.5°C) rating for 5/16"
