Dwyer 160F-KIT | Straight Pitot Tube Kit | 160F, 160F-24, 160F-36, 160F-48 + Case

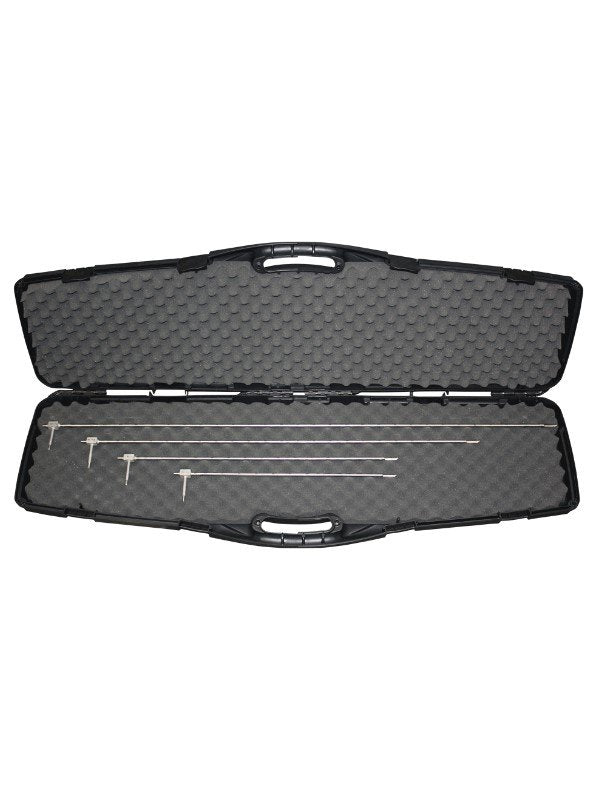

The Dwyer 160F-KIT groups four straight stainless steel Pitot tubes, the 160F, 160F-24, 160F-36 and 160F-48, in one carrying case so the right length is at hand for each duct.
- Includes 160F, 160F-24, 160F-36 and 160F-48 straight Pitot tubes
- Carrying case included
- Each tube: ±2% FS accuracy from 0 to 9000 FPM, K-factor 0.81
- 304 SS wetted parts with 1/4" OD process connections, rated to 1500 °F
- Specifications
- Features
- Downloads
| Part Number | 160F-KIT |
| Brand | Dwyer |
| Type | Straight Pitot Tube Kit |
| Accuracy | ±2% FS, 0 to 9000 FPM (45 m/s) |
| Process Connection | 1/4" OD |
| Approvals | RoHS II (EU Directive 2011/65/EU) |
| Maximum Operating Temperature | 1500 °F (815 °C) |
| Wetted Material | 304 SS |
| Contents | 160F, 160F-24, 160F-36, 160F-48, carrying case |
| K-Factor | 0.81 |
- Its straight form makes it simple to insert into ducts.
- Accurate placement is made easier by permanently stamped insertion depth graduations.
- Tip alignment with the flow is aided by the alignment indication.
