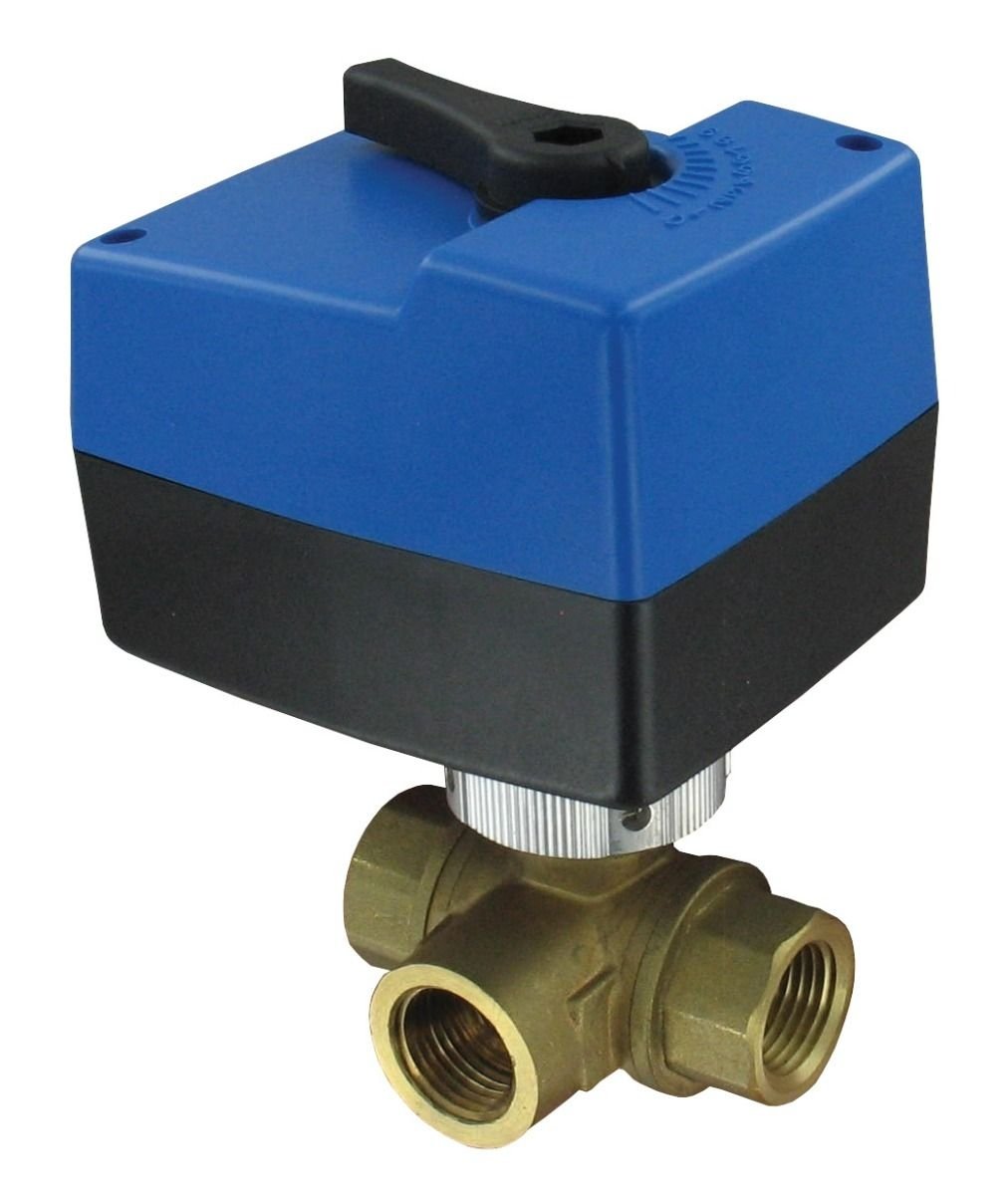

Dwyer Instruments 3HBAV0212 | Three-Way detachable electric ball valve | Cv value 4.5 | 1/2" NPT | 120 VAC | floating
The Dwyer 3HBAV0212 is a three-way detachable electric ball valve with 1/2" NPT connections, Cv 4.5, floating control, and a 120 VAC actuator. It is designed for mixing and diverting applications in hot- and chilled-water HVAC loops, heating systems, and industrial water circuits.
Part Number: 3HBAV0212
The Dwyer 3HBAV0212 combines a 3-way ball valve body in 1/2" NPT with a detachable electric actuator, providing automated mixing and diverting control for hot and cold water circuits.
The actuator uses floating three-point control, allowing open, close, and stop commands from a BMS or compatible controller. This makes the valve suitable for applications where flow needs to be routed or blended between ports rather than simply controlled as an on/off shutoff valve.
The 120 VAC actuator supply is suitable for building and industrial control systems where this voltage is available. The actuator includes position switches and a local status indicator, along with a manual override for convenient operation during commissioning or service.
The detachable actuator can be removed from the valve body for servicing without breaking the pipe connection, helping simplify maintenance and reduce disruption to the installed piping.
With a rated Cv of 4.5, the 3HBAV0212 is sized for 1/2" NPT branch and mixing circuits where a single valve is required to blend or divert flow between ports.
The 3HBAV0212 is part of Dwyer Instruments' three-way electric ball valve range. For assistance confirming the correct variant for your application, contact GeneralTech Shop.
Key Benefits
- 3-way design for mixing or diverting applications
- Floating three-point control for automated open/close/stop operation
- 120 VAC actuator supply
- Detachable actuator for easier servicing
- Position switches and local status indicator
- Manual override for convenient operation
- Cv 4.5 flow coefficient
- 1/2" NPT connection size
- Suitable for HVAC, heating, and industrial water systems
Who This Product Is Best For
The Dwyer 3HBAV0212 is suitable for HVAC and process controls contractors, building automation professionals, and system integrators who need a motorized three-way ball valve with floating control for mixing or diverting hot- and cold-water circuits.
It is particularly suitable for systems where a 120 VAC actuator supply and three-point open/close/stop control are available.
How to Use
- Install the 3HBAV0212 at the required three-way mixing or diverting point in the 1/2" NPT branch line.
- Connect the 120 VAC actuator supply according to the installation requirements.
- Connect the floating three-point control signal to the BMS or compatible controller.
- Configure and commission the actuator's operating range through the control system.
- Verify that the valve correctly mixes or diverts flow between the ports in response to the control signal.
Frequently Asked Questions
What does the Dwyer 3HBAV0212 do?
It provides three-way automated control for mixing or diverting water flow between ports in HVAC, heating, and industrial water systems.
What type of control does the 3HBAV0212 use?
It uses floating three-point control, providing open, close, and stop commands.
What supply voltage does the 3HBAV0212 require?
The actuator requires a 120 VAC supply.
What is the Cv of the 3HBAV0212?
The valve has a Cv of 4.5.
What is the connection size?
The 3HBAV0212 has 1/2" NPT connections.
Can the actuator be removed for servicing?
Yes. The detachable actuator can be removed from the valve body without breaking the pipe connection. It also includes a manual override.
Is a calibration certificate available for the 3HBAV0212?
Calibration and certification availability is not specified in the supplied standard product information. Contact GeneralTech Shop at +971 6 5436933 to confirm what is available for your order.
Does GeneralTech Shop deliver the 3HBAV0212 across the UAE?
For availability and delivery timelines, contact GeneralTech Shop at +971 6 5436933.
