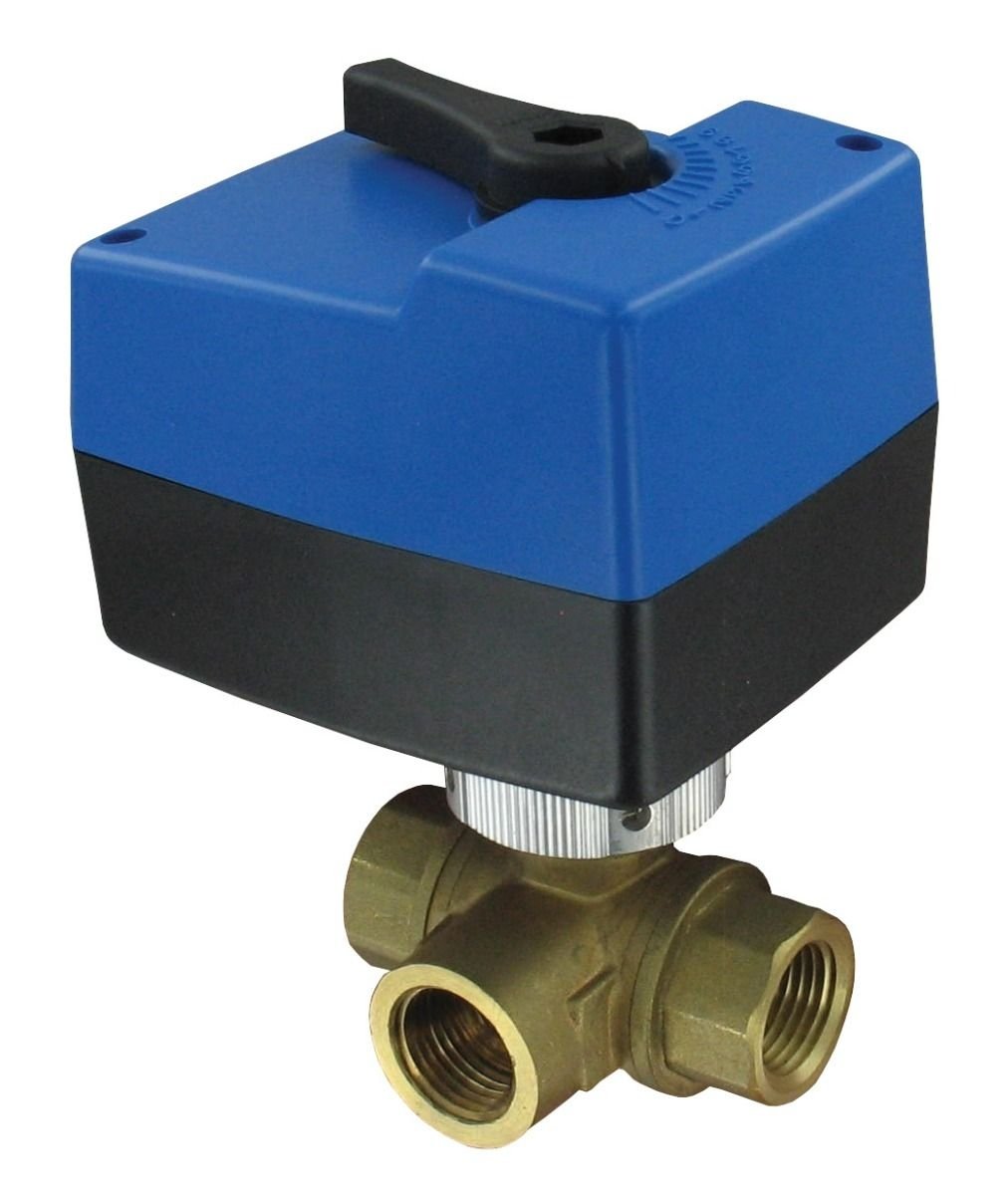

Dwyer Instruments 3HBAV0312 | Three-Way detachable electric ball valve | Cv value 7.0 | 3/4" NPT | 120 VAC | floating
The Dwyer 3HBAV0312 three-way electric ball valve is a detachable 3-way motorized valve with a 3/4" NPT connection, floating control, and a 120 VAC actuator. With a Cv of 7.0, it is designed for automated mixing and diverting of hot- and chilled-water flow in HVAC, heating, and industrial water systems.
Part No.: 3HBAV0312
The Dwyer 3HBAV0312 combines a 3-way ball valve body with a detachable electric actuator to provide automated mixing or diverting control for water circuits. It can blend hot and cold water or route flow between ports in HVAC, heating, and industrial water applications.
The actuator includes position switches and a local position indicator, along with a manual override. Its detachable design allows the actuator to be removed from the valve body for servicing without breaking the pipe connection, helping simplify maintenance.
The valve uses floating three-point control, allowing a BMS or local controller to command open, close, and stop operation. The 120 VAC actuator supply is suitable for control systems using this building and industrial control voltage.
With a Cv of 7.0, the 3HBAV0312 is sized for 3/4" NPT branch and mixing circuits where automated flow routing or blending is required rather than simple two-way shutoff.
For applications requiring a different actuator supply voltage, the Dwyer 3HBAV0314 provides the same 3/4" NPT connection and floating control with a 24 VAC actuator.
Key Benefits
- 3-way valve body for mixing or diverting applications
- 3/4" NPT connection for HVAC and water circuits
- Detachable electric actuator for simplified servicing
- Position switches and local position indicator
- Manual override for local operation
- Floating three-point control for open/close/stop commands
- 120 VAC actuator supply
- Cv 7.0 flow coefficient
- Suitable for BMS-controlled HVAC applications
Who This Product Is Best For
The Dwyer 3HBAV0312 is suitable for HVAC and process controls contractors, building automation professionals, and system integrators who need a motorized 3-way ball valve with a 3/4" NPT connection, floating control, and 120 VAC actuator supply.
It is particularly useful for applications requiring automated mixing or diverting of hot- and chilled-water circuits.
How to Use
- Install the 3HBAV0312 at the required 3-way mixing or diverting point using the 3/4" NPT connection.
- Connect the 120 VAC actuator supply according to the installation requirements.
- Connect the floating three-point control signal to the BMS or local controller.
- Configure the controller for the required open, close, and stop operation.
- Commission the actuator and verify that the valve correctly mixes or diverts flow between the ports.
Frequently Asked Questions
What does the 3HBAV0312 do?
The 3HBAV0312 is a 3-way motorized ball valve designed to mix or divert flow between ports. It can be used for applications such as blending hot and cold water or routing flow through a bypass.
What control signal does the 3HBAV0312 use?
It uses floating three-point control with open, close, and stop commands.
What supply voltage does the actuator require?
The actuator requires a 120 VAC supply.
What is the Cv of the 3HBAV0312?
The flow coefficient is Cv 7.0.
What is the connection size?
The valve has a 3/4" NPT connection.
Can the actuator be removed for servicing?
Yes. The detachable actuator can be removed from the valve body for servicing without breaking the pipe connection.
Does the actuator have a manual override?
Yes. The actuator includes a manual override for local operation.
Can the 3HBAV0312 be controlled through a BMS?
Yes. Its floating control configuration allows operation from a compatible BMS or local controller.
What is the difference between the 3HBAV0312 and 3HBAV0314?
Both models have a 3/4" NPT connection and floating control. The 3HBAV0312 uses a 120 VAC actuator, while the 3HBAV0314 uses a 24 VAC actuator.
