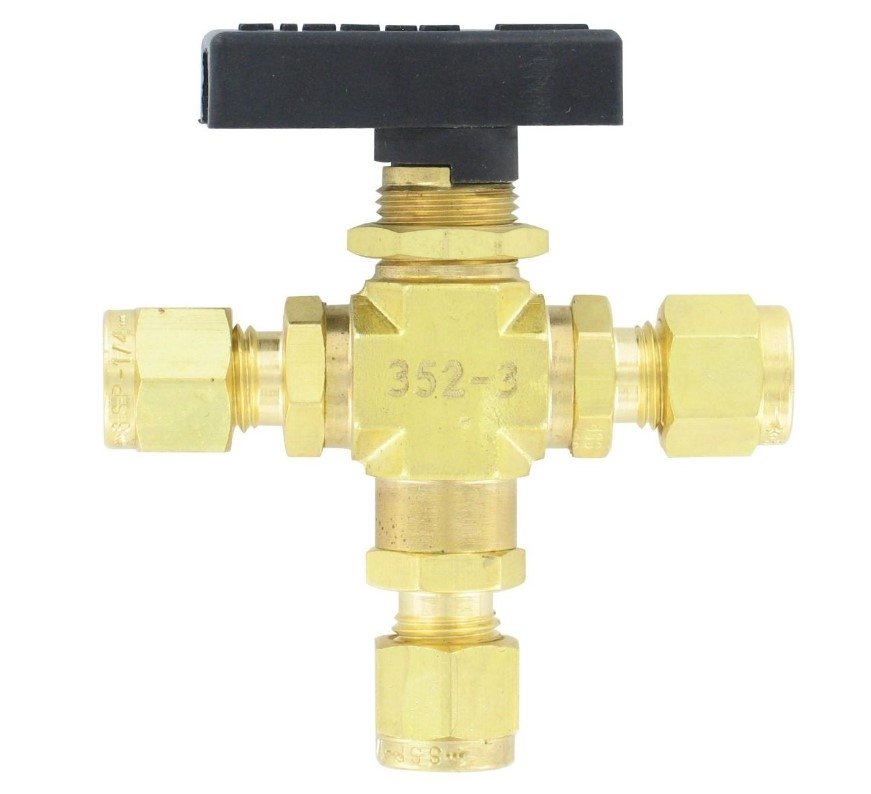

Dwyer Instruments 3MSV-BD550 | Compact 3-way ball valve | Brass | 3/4" tube | 11.10 mm orifice
The Dwyer 3MSV-BD550 is a compact brass 3-way ball valve designed for directional and diverting flow control in instrumentation and small industrial systems. It features a 3/4" tube fitting connection, an 11.10 mm orifice, and a brass body for reliable service in instrumentation applications.
Request a quote in under a minute — call +971 6 5436933.
Part Number: 3MSV-BD550
The Dwyer 3MSV-BD550 is a compact 3-way ball valve engineered for directional flow control in instrumentation and small industrial systems. Its microfinished ball and PTFE seats provide a reliable, low-torque seal, while the straight-through flow design helps minimize pressure drop.
The brass valve body and 3/4" tube fitting connection allow the valve to be integrated directly into tube-fitting panels or process lines without requiring additional adapters. With an 11.10 mm orifice and a maximum pressure rating of 1500 psig (103 bar), the 3MSV-BD550 is designed for instrumentation applications that require flow to be routed or diverted between ports rather than simply shut off.
The valve is rated for operating temperatures from -40° to 350°F. Its compact construction makes it suitable where installation space is limited and dependable directional flow control is required.
For applications requiring the same 3-way configuration and 11.10 mm orifice with a stainless steel body, the Dwyer 3MSV-SD550 offers a 316 stainless steel construction with a 3/4" tube fitting connection.
Ready to order the 3MSV-BD550? Speak to our team. Call +971 6 5436933.
Key Benefits
- 3-way design for directional and diverting flow control
- 3/4" tube fitting connection
- 11.10 mm orifice
- Brass valve body
- Microfinished ball and PTFE seats for reliable, low-torque sealing
- Straight-through flow design to help minimize pressure drop
- Maximum pressure rating of 1500 psig (103 bar)
- Operating temperature range of -40° to 350°F
- Compact design for instrumentation and small process systems
Who This Product Is Best For
The Dwyer 3MSV-BD550 is suited for instrumentation and controls technicians who need a compact 3-way brass ball valve with a 3/4" tube fitting connection for directing or diverting flow in panel-mounted or small process systems.
How to Use
- Mount or connect the 3MSV-BD550 at the required directional or diverting point using its 3/4" tube fitting connection.
- Verify that the orientation of the three ports matches the intended flow path before commissioning.
- Cycle the valve through its positions to confirm smooth operation and correct flow routing.
- Place the valve into service after confirming that the installation and operating conditions are within the specified limits.
Frequently Asked Questions
What does a 3-way valve like the Dwyer 3MSV-BD550 do?
The 3MSV-BD550 directs or diverts flow between ports through a single valve body, rather than simply opening or closing one line.
What material is the 3MSV-BD550 body?
The valve body is made of brass.
What connection does the 3MSV-BD550 use?
The valve uses a 3/4" tube fitting connection.
What is the orifice size of the 3MSV-BD550?
The 3MSV-BD550 has an 11.10 mm orifice.
What is the maximum pressure rating of the 3MSV-BD550?
The maximum pressure rating is 1500 psig (103 bar).
What is the operating temperature range?
The specified operating temperature range is -40° to 350°F.
Does GeneralTech Shop deliver the 3MSV-BD550 across the UAE?
For UAE availability and delivery timelines, contact GeneralTech Shop at +971 6 5436933.
Should I choose the 3MSV-BD550 or the 3MSV-SD550?
Both models have a 3/4" tube fitting connection and an 11.10 mm orifice. The 3MSV-BD550 has a brass body, while the 3MSV-SD550 has a 316 stainless steel body. Select the model according to the material requirements of your application.
