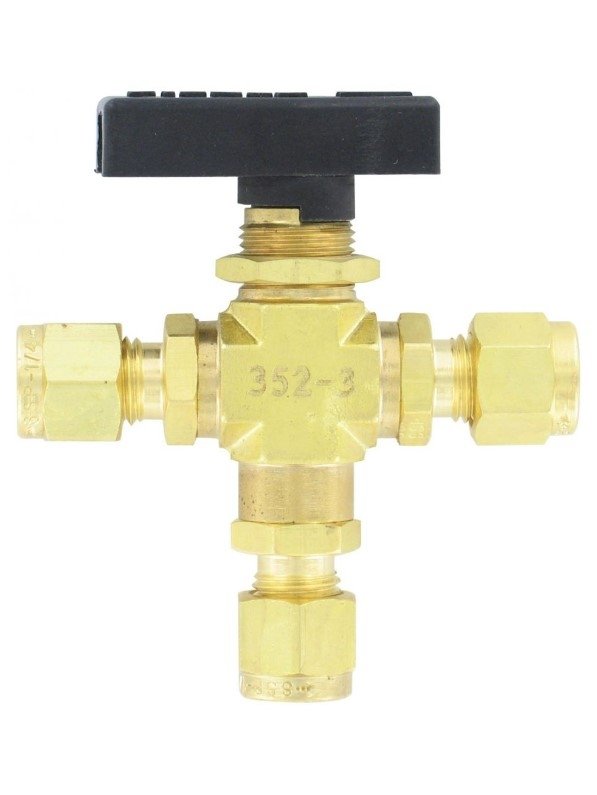

Dwyer Instruments 3MSV-SD110 | Compact 3-way ball valve | 316SS | 1/8" tube | 2.36 mm orifice
Genuine Dwyer 3MSV-SD110 Compact 3-Way Ball Valve, in stock at General Tech Services LLC, UAE. This 316 SS valve features a 1/8" tube connection, 0.093 in (2.36 mm) orifice and 1500 psig pressure rating for precise fluid directional control in instrumentation and process systems. Free UAE-wide shipping.
Request a quote in under a minute - call +971 6 5436933.
Part No. 3MSV-SD110
The Dwyer 3MSV-SD110 is a compact 3-way ball valve designed for precise fluid directional control in instrumentation and process systems. Its 316 stainless steel construction, 1/8" tube connection and 0.093 in (2.36 mm) orifice make it suitable for compact panels, skids and fluid-handling installations.
PTFE ball seats and a micro-finished ball provide smooth operation and reliable sealing. The straight-through flow channel design helps minimize pressure drop, supporting efficient fluid flow and system performance.
A blow-out-proof ball and stem design provides added protection against overpressure-related failure. The 316 SS wetted construction is suited to demanding instrumentation and process environments.
The valve is rated for pressures up to 1500 psig (103 bar) and operating temperatures from -40 to 350°F (-40 to 176°C).
Key Benefits
- Precise 3-way directional control for instrumentation and process systems
- 316 SS body and wetted construction for demanding applications
- PTFE ball seats and micro-finished ball for reliable sealing and smooth operation
- Straight-through flow path helps minimize pressure drop
- Blow-out-proof ball and stem design for added protection under overpressure conditions
- Compact design for panels and skids with limited installation space
- 1/8" tube connection with 0.093 in (2.36 mm) orifice
- Genuine Dwyer stock with free UAE-wide shipping
Who This Product Is Best For
- Instrumentation and process systems requiring compact 3-way fluid routing
- Applications where controlled directional flow and low pressure drop are important
- Panel and skid assemblies using fractional tube connections
- Industrial fluid systems requiring 316 SS valve construction
How to Specify & Commission It
- Confirm the 3MSV-SD110's 1/8" tube connection, 2.36 mm orifice and pressure rating match your system requirements.
- Install the valve using compatible tube fittings and ensure the ports are correctly oriented for the intended flow arrangement.
- Operate the valve handle to select the required flow path through the three-way configuration.
- Verify the valve's sealing and flow direction before bringing the system to full operating pressure.
Frequently Asked Questions
What type of valve is the Dwyer 3MSV-SD110?
It is a compact 3-way ball valve designed for fluid directional control in instrumentation and process systems.
What is the body material?
The 3MSV-SD110 has a 316 stainless steel body.
What connection size does the valve use?
It uses a 1/8" fractional tube connection.
What is the orifice size?
The valve has a 0.093 in (2.36 mm) orifice.
What is the maximum pressure rating?
The maximum operating pressure is 1500 psig (103 bar).
What is the operating temperature range?
The valve operates from -40 to 350°F (-40 to 176°C).
What materials are used in the wetted components?
The body, connector, stem and ball are 316 SS, with fluoroelastomer O-rings and backup rings and PTFE ball seats.
Does the valve have a blow-out-proof design?
Yes. The ball and stem use a blow-out-proof design to help protect against overpressure-related failure.
Is genuine Dwyer stock available in the UAE?
Yes. General Tech Services LLC supplies genuine Dwyer stock with free UAE-wide shipping. Call +971 6 5436933 for pricing and current availability.
