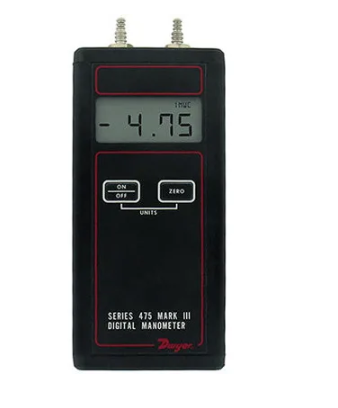

Dwyer 475-00-FM | Handheld Digital Manometer | 0.14 psi
Listed at 0.14 psi, the Dwyer 475-00-FM is a Series 475 handheld digital manometer measuring positive, negative or differential pressure of air and natural gases.
- Range 0.14 psi
- 4-digit 0.42" (10.6 mm) LCD on the 475-00-FM
- Accuracy ±0.5% FS at 60-78 °F, hysteresis ±0.1% FS (0.14 psi model)
- Dual push pads for unit selection, auto zero and on/off on the 0.14 psi unit
- FM approved for Class I, Div 2, Groups A, B, C, D, T4 Ta = 70 °C hazardous areas (475-00-FM)
- Specifications
- Features
- Downloads
| Part Number | 475-00-FM |
| Brand | Dwyer |
| Series | 475 Mark III |
| Type | Handheld Digital Manometer |
| Range | 0.14 psi |
| Accuracy | ±0.5% FS at 60-78 °F; ±1.5% FS at 32-60 °F and 78-104 °F |
| Weight | 10.8 oz (306 g) |
| Power | 9 V alkaline battery |
| Display | 0.42" (10.6 mm) 4-digit LCD |
| Operating Temperature | 0 to 140 °F (-17.8 to 60 °C) |
| Approvals | CE, FM |
| Hysteresis | ±0.1% FS |
| Connections | Two barbed, for 1/8" or 3/16" ID tubing |
| Compensated Temperature | 32 to 104 °F (0 to 40 °C) |
- Checking the pressure of natural gas in boilers and other combustion machinery.
- Using an AV calculator and a Dwyer Pitot tube, air velocity monitoring.
- Calibration of other instruments in the field.
- Keeping an eye on or debugging HVAC systems.
