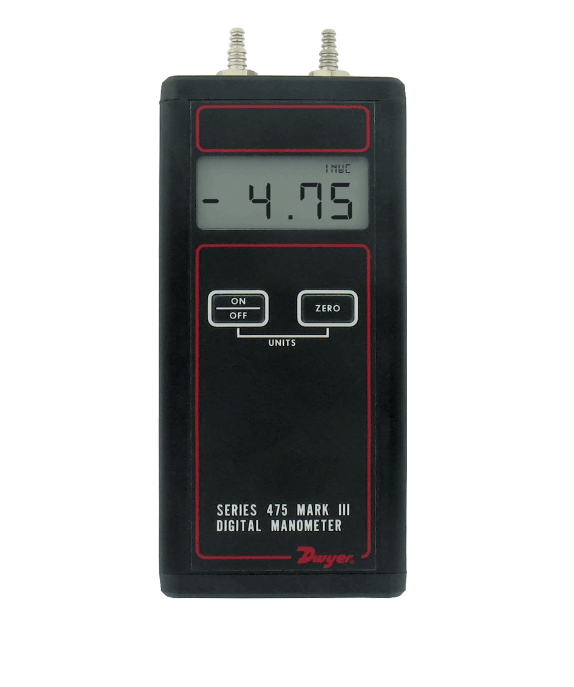

Dwyer 475-5-FM | Handheld Digital Manometer | 0-20.00 psi, 60 psig Max
The Dwyer 475-5-FM measures 0-20.00 psi (1.379 bar) and tolerates up to 60 psig, making it a portable digital manometer for air and natural gas pressure checks. FM approval covers Class I, Div 2, Groups A, B, C, D, T4 (Ta = 70°C) locations.
- 0.42" (10.6 mm) 4-digit LCD; runs on a user-replaceable 9 V alkaline battery
- Front push pads for on/off, auto-zero and pressure unit selection; works as an air velocity gauge with a Dwyer Pitot tube
- Specifications
- Features
- Downloads
| Part Number | 475-5-FM |
| Brand | Dwyer |
| Range | 0-20.00 psi (1.379 bar) |
| Accuracy | ±0.5% FS at 60 to 78 °F (15.6 to 25.6 °C); ±1.5% FS from 32 to 60 °F and 78 to 104 °F |
| Weight | 10.8 oz (306 g) |
| Power | 9 V alkaline battery, user replaceable |
| Maximum Pressure | 60 psig |
| Display | 0.42" (10.6 mm) 4-digit LCD |
| Process Connection | Barbed, for 1/8" or 3/16" I.D. tubing |
| Operating Temperature | 0 to 140 °F (-17.8 to 60 °C) |
| Approvals | CE, FM |
| Hysteresis | ±0.1% FS |
| Media | Air and natural gases |
| Compensated Temperature | 32 to 104 °F (0 to 40 °C) |
- Keeping an eye on the natural gas pressure in boilers and other combustion apparatus.
- Air velocity monitoring using an AV calculator and a Dwyer Pitot tube.
- Calibration of other instruments in the field.
- HVAC system monitoring or troubleshooting.
