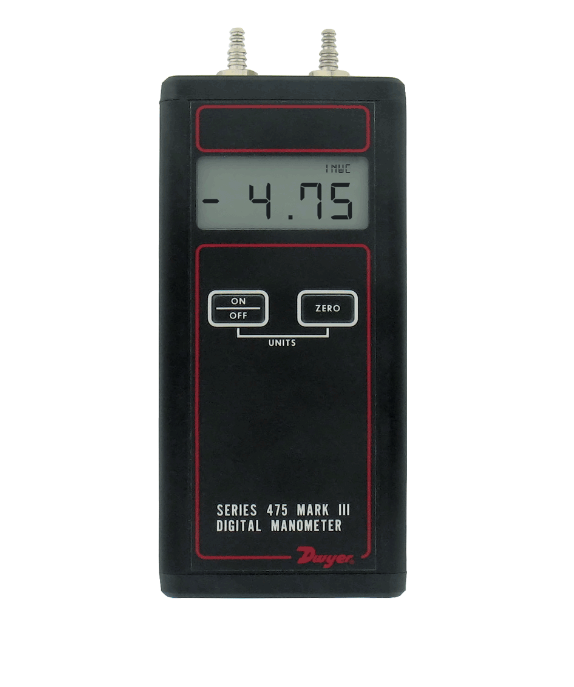

Dwyer 475-7-FM | Handheld Digital Manometer | 0-100.0 psi, 150 psig Max
The Dwyer 475-7-FM extends the 475 handheld range to 0-100.0 psi (6.895 bar), with a 150 psig maximum pressure and compression fittings for 1/4" O.D. tubing. Like the rest of the series, it handles positive, negative and differential readings on air and natural gas.
- Operated from two front push pads, with no setup required; air velocity readings possible when used with a Dwyer Pitot tube
- Rated ±0.5% FS between 60 and 78°F; readings shown on a 0.42" 4-digit LCD
- Specifications
- Features
- Downloads
| Part Number | 475-7-FM |
| Brand | Dwyer |
| Range | 0-100.0 psi (6.895 bar) |
| Accuracy | ±0.5% FS at 60 to 78 °F (15.6 to 25.6 °C); ±1.5% FS from 32 to 60 °F and 78 to 104 °F |
| Weight | 10.8 oz (306 g) |
| Power | 9 V alkaline battery, user replaceable |
| Maximum Pressure | 150 psig |
| Display | 0.42" (10.6 mm) 4-digit LCD |
| Process Connection | Compression fittings for 1/8" I.D. x 1/4" O.D. tubing |
| Operating Temperature | 0 to 140 °F (-17.8 to 60 °C) |
| Approvals | CE, FM |
| Hysteresis | ±0.1% FS |
| Media | Air and natural gases |
| Compensated Temperature | 32 to 104 °F (0 to 40 °C) |
- Keeping an eye on the pressure of natural gas in boilers and other combustion equipment.
- Monitoring of air velocity using an AV calculator and a Dwyer Pitot tube.
- Calibration of additional instruments in the field.
- Keeping an eye on or debugging HVAC systems.
