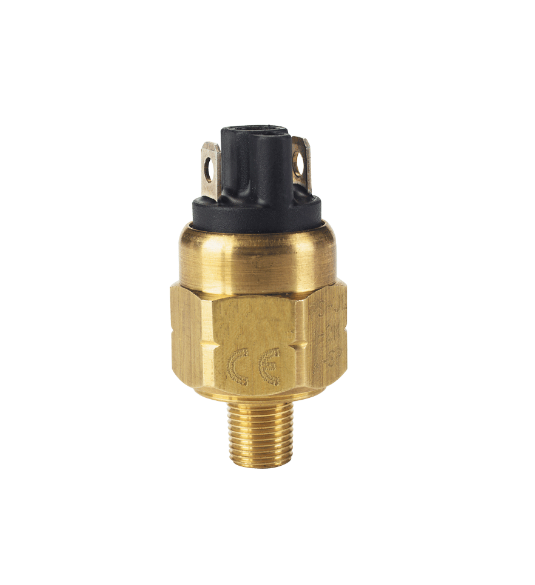

Dwyer Instruments A2-6801 | Subminiature Pressure Switch | brass;20-200 psi (1.4-6.89 bar);spade terminals;NO
The Dwyer A2-6801 Subminiature Pressure Switch is an adaptable part that can be used in many different contexts. It is resistant to hostile conditions with an IP69 enclosure rating and a temperature range of -40 to 230°F (-40 to 110°C). It provides choices for electrical connections using flying leads or 1/4" spade terminals. This switch has a 350 psi (24 bar) pressure limit and works with both liquids and gases. The brass and polymide film are among the wetted materials. It has a male NPT 1/8" or 1/4" process connection. This switch type—SPST, 100 VA, 42 VDC—performs dependably. This pressure switch guarantees accurate control with a deadband of less than 10% and repeatability of ±3% of the maximum set point at 70°F (21°C).
