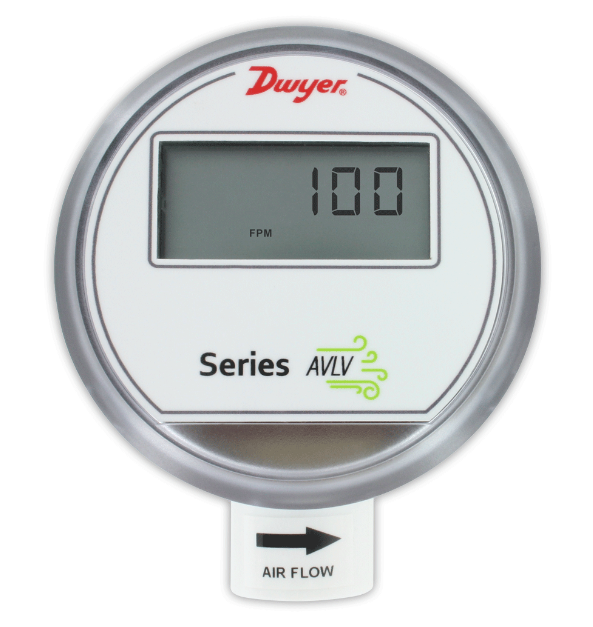

Dwyer Instruments AVLV-1DB1-LCD | Air velocity transmitter | 1% accuracy | Duct mount | BACnet communication with LCD display
The Dwyer AVLV-1DB1-LCD air velocity transmitter is a duct-mount solution designed for accurate airflow monitoring and direct integration with building management systems through BACnet MS/TP communication. It provides 1% accuracy, four field-selectable velocity ranges, and an onboard 5-digit LCD for convenient local monitoring.
Request a quote in under a minute — call +971 6 5436933.
Part Number: AVLV-1DB1-LCD
The Dwyer AVLV-1DB1-LCD is a duct-mount air velocity transmitter designed for direct integration into a building management system using BACnet MS/TP communication. It delivers 1% accuracy across four field-selectable velocity ranges: 100, 200, 300, or 400 FPM (0.5, 1, 1.5, or 2 m/s).
The transmitter features a NEMA 4X (IP66) enclosure, providing protection for installation in mechanical rooms, plenum spaces, and typical HVAC environments. It operates across a temperature range of 32 to 122°F (0 to 50°C) and supports 5–95% RH non-condensing humidity.
With a response time of approximately 4 seconds typical, or approximately 1 second at constant temperature, the AVLV-1DB1-LCD is suitable for standard VAV and AHU airflow control applications. It operates on 24 VAC or 24 VDC power with maximum current consumption of 60 mA.
A built-in 5-digit LCD display provides a convenient local readout directly at the transmitter. This makes the unit useful during commissioning, installation, troubleshooting, and field verification without requiring a laptop or separate monitoring device.
The compact 6.0 oz transmitter carries BTL and CE approvals and is designed for professional HVAC control and building automation applications.
If a local display is not required, the Dwyer range also includes the AVLV-1DB1, which provides 1% accuracy and BACnet MS/TP communication without the onboard LCD.
Ready to order? Speak to our team at +971 6 5436933.
Key Benefits
- 1% accuracy for reliable duct air velocity measurement
- BACnet MS/TP communication for direct BMS integration
- Four field-selectable velocity ranges from 100 to 400 FPM
- NEMA 4X (IP66) enclosure for HVAC and mechanical room environments
- 5-digit LCD display for convenient local monitoring
- Suitable for VAV box and AHU airflow control
- Compact 6.0 oz design
- 24 VAC or 24 VDC power supply
- BTL and CE approvals
Who This Product Is Best For
The Dwyer AVLV-1DB1-LCD is suitable for:
- BMS integrators
- HVAC controls contractors
- Building automation professionals
- VAV system installers
- AHU control applications
- Commercial HVAC projects
- Industrial building automation installations
It is particularly useful where accurate duct air velocity measurement, BACnet communication, and a local display are required for commissioning and ongoing system verification.
How to Use
- Mount the AVLV-1DB1-LCD in the duct according to standard probe installation practices.
- Connect the transmitter to a 24 VAC or 24 VDC power supply.
- Connect the BACnet communication wiring to the BMS or controller.
- Select the required velocity range: 100, 200, 300, or 400 FPM.
- Check the air velocity reading on the onboard 5-digit LCD.
- Verify that the connected BMS or controller is receiving the transmitted reading correctly.
- Configure the building automation system according to the requirements of the HVAC application.
Frequently Asked Questions
What accuracy does the Dwyer AVLV-1DB1-LCD provide?
The AVLV-1DB1-LCD provides 1% accuracy across its field-selectable velocity ranges.
What velocity ranges can the AVLV-1DB1-LCD be set to?
It can be configured for 100, 200, 300, or 400 FPM, equivalent to 0.5, 1, 1.5, or 2 m/s.
Does the AVLV-1DB1-LCD support BACnet?
Yes. The transmitter communicates using BACnet MS/TP for direct integration with compatible BACnet-based building management systems.
What is the enclosure rating?
The AVLV-1DB1-LCD has a NEMA 4X (IP66) enclosure rating, making it suitable for mechanical room and plenum installations.
Does the AVLV-1DB1-LCD have a local display?
Yes. It features an integrated 5-digit LCD display for local air velocity readings and convenient field commissioning.
What power supply does the AVLV-1DB1-LCD require?
The transmitter operates on 24 VAC or 24 VDC with a maximum current consumption of 60 mA.
What is the difference between the AVLV-1DB1-LCD and AVLV-1DB1?
The AVLV-1DB1-LCD includes a 5-digit LCD for local monitoring, while the AVLV-1DB1 does not have an onboard display. Both models provide 1% accuracy and BACnet MS/TP communication.
Does GeneralTech Shop deliver the AVLV-1DB1-LCD across the UAE?
Yes. Contact GeneralTech Shop at +971 6 5436933 to confirm availability and delivery timelines for your emirate.
