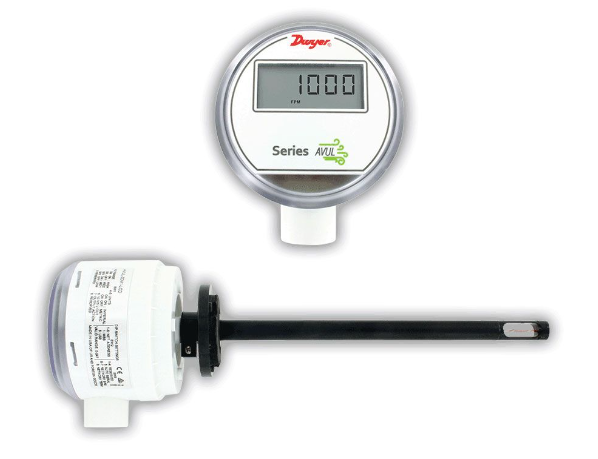

Dwyer Instruments AVUL-5DB1 | Air velocity transmitter | 5% of reading accuracy | Duct mount | BACnet communications
The Dwyer AVUL-5DB1 Air Velocity Transmitter is a high-velocity duct-mount transmitter designed for supply and exhaust duct applications. It provides 5% of reading accuracy, BACnet MS/TP communication, and field-selectable velocity ranges from 1000 to 4000 FPM for reliable airflow monitoring and BMS integration.
Request a Quote: Call +971 6 5436933
Part Number: AVUL-5DB1
The Dwyer AVUL-5DB1 is designed for higher-velocity supply and exhaust duct applications, providing air velocity measurement from 1000 to 4000 FPM (5–20 m/s) with 5% of reading accuracy. Its BACnet MS/TP communication enables direct integration with compatible building management systems and HVAC controllers.
The transmitter features four field-selectable velocity ranges: 1000, 2000, 3000, or 4000 FPM (5, 10, 15, or 20 m/s). This allows the device to be configured according to the airflow requirements of different HVAC installations.
A NEMA 4X (IP66) enclosure provides protection suitable for mechanical rooms and plenum environments. The AVUL-5DB1 operates within 32 to 122°F (0–50°C) and supports 5–95% RH non-condensing humidity conditions.
The transmitter has a response time of approximately 4 seconds under typical conditions and 1 second at constant temperature, making it suitable for real-time AHU and fan-control applications. It operates on 24 VDC or 24 VAC with a maximum current consumption of 60 mA.
This variant does not include an onboard display. Air velocity readings are transmitted through BACnet to the connected BMS or controller. Its compact body is designed for mounting with a standard duct probe assembly, while BTL and CE approvals support applicable BMS integration and electrical compliance requirements.
For applications where local monitoring is required, the Dwyer AVUL-5DB1-LCD provides the same high-velocity measurement and BACnet communication capabilities with an integrated 5-digit LCD.
Key Benefits
- 5% of reading accuracy for high-velocity duct applications
- BACnet MS/TP communication for direct BMS integration
- Field-selectable ranges from 1000 to 4000 FPM
- Four selectable velocity settings: 1000, 2000, 3000, and 4000 FPM
- NEMA 4X (IP66) enclosure for mechanical room and plenum environments
- Suitable for AHU, supply duct, exhaust duct, and fan-control applications
- Compact design for standard duct probe installation
- No onboard display for a streamlined transmitter configuration
Who This Product Is Best For
The Dwyer AVUL-5DB1 is suitable for HVAC controls contractors, BMS integrators, mechanical contractors, facility managers, and building automation professionals working with high-velocity duct systems.
It is particularly suited for AHUs, supply and exhaust ducts, fan-control systems, and BACnet-based building automation applications where air velocity data needs to be transmitted directly to a compatible controller.
How to Use
- Mount the AVUL-5DB1 in the duct according to standard probe installation practices.
- Connect the transmitter to a suitable 24 VDC or 24 VAC power supply.
- Connect the BACnet MS/TP communication wiring to the compatible BMS or controller.
- Select the required velocity range: 1000, 2000, 3000, or 4000 FPM.
- Verify that the transmitted air velocity reading is correctly received by the connected BMS or controller.
Frequently Asked Questions
What accuracy does the Dwyer AVUL-5DB1 provide?
The AVUL-5DB1 provides 5% of reading accuracy across its field-selectable velocity ranges.
What velocity ranges can the AVUL-5DB1 measure?
It can be configured for 1000, 2000, 3000, or 4000 FPM (5, 10, 15, or 20 m/s).
Does the AVUL-5DB1 support BACnet?
Yes. It communicates through BACnet MS/TP for integration with compatible BACnet-based BMS and control systems.
What is the enclosure rating of the AVUL-5DB1?
The transmitter has a NEMA 4X (IP66) enclosure rating, suitable for mechanical room and plenum installation.
Does the AVUL-5DB1 have a local display?
No. The AVUL-5DB1 does not have an onboard display. Readings are transmitted through BACnet to the connected BMS or controller.
What power supply does the AVUL-5DB1 require?
It operates on 24 VDC or 24 VAC with a maximum current consumption of 60 mA.
What is the difference between the AVUL-5DB1 and AVUL-5DB1-LCD?
Both models provide high-velocity air measurement and BACnet MS/TP communication. The AVUL-5DB1-LCD includes a 5-digit LCD, while the AVUL-5DB1 does not have a local display.
