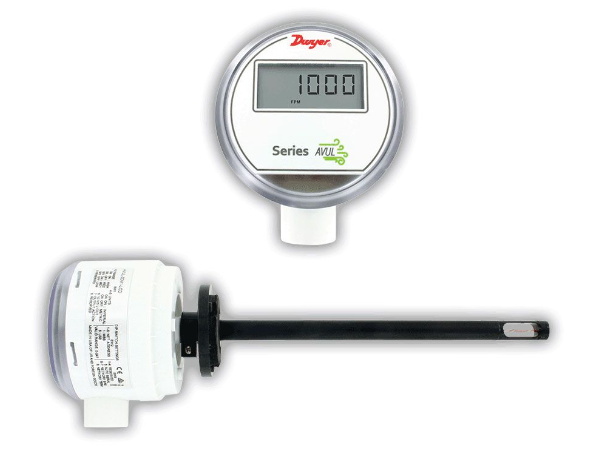

Dwyer Instruments AVUL-5DB1-LCD | Air velocity transmitter | 5% of reading accuracy | Duct mount | BACnet communications | with LCD
The Dwyer AVUL-5DB1-LCD Air Velocity Transmitter is a high-velocity duct-mount transmitter designed for supply and exhaust duct applications. It provides 5% of reading accuracy, BACnet MS/TP communication, and field-selectable velocity ranges from 1000 to 4000 FPM. An integrated 5-digit LCD provides convenient local monitoring during installation and commissioning.
Request a Quote: Call +971 6 5436933
Part Number: AVUL-5DB1-LCD
The Dwyer AVUL-5DB1-LCD is designed for higher-velocity duct applications, providing air velocity measurement from 1000 to 4000 FPM (5–20 m/s) with 5% of reading accuracy. Its BACnet MS/TP communication makes it suitable for direct integration with compatible building management systems and HVAC controllers.
The transmitter provides four field-selectable velocity ranges: 1000, 2000, 3000, or 4000 FPM (5, 10, 15, or 20 m/s). This flexibility allows the device to be configured for different supply, exhaust, and HVAC airflow requirements.
A durable NEMA 4X (IP66) enclosure protects the transmitter in mechanical rooms and plenum environments. It operates within 32 to 122°F (0–50°C) and supports 5–95% RH non-condensing humidity conditions.
The AVUL-5DB1-LCD has a response time of approximately 4 seconds under typical conditions and 1 second at constant temperature, making it suitable for AHU and fan-control applications. It operates on 24 VDC or 24 VAC with a maximum current consumption of 60 mA.
A built-in 5-digit LCD allows technicians to verify air velocity readings locally during installation, testing, and commissioning. This can simplify field verification before completing the BMS integration.
The transmitter's compact body is designed for mounting into a standard duct probe assembly. BTL and CE approvals support applicable BMS integration and electrical compliance requirements.
If a local display is not required, the Dwyer AVUL-5DB1 provides the same high-velocity measurement and BACnet communication configuration without the LCD.
Key Benefits
- 5% of reading accuracy for high-velocity duct applications
- BACnet MS/TP communication for BMS integration
- Field-selectable ranges from 1000 to 4000 FPM
- Four selectable velocity settings: 1000, 2000, 3000, and 4000 FPM
- Built-in 5-digit LCD for local commissioning and monitoring
- NEMA 4X (IP66) enclosure for mechanical room and plenum environments
- Suitable for AHU, supply duct, exhaust duct, and fan-control applications
- Compact design for standard duct probe installation
Who This Product Is Best For
The Dwyer AVUL-5DB1-LCD is suitable for HVAC controls contractors, BMS integrators, mechanical contractors, facility managers, and building automation professionals working with high-velocity duct systems.
It is particularly useful for AHUs, supply and exhaust ducts, fan-control systems, and BACnet-based building automation applications where local display capability is also required.
How to Use
- Mount the AVUL-5DB1-LCD in the duct according to standard probe installation practices.
- Connect the transmitter to a suitable 24 VDC or 24 VAC power supply.
- Connect the BACnet MS/TP communication wiring to the compatible BMS or controller.
- Select the required velocity range: 1000, 2000, 3000, or 4000 FPM.
- Verify the air velocity reading on the built-in 5-digit LCD.
- Confirm that the transmitted data is correctly received by the connected BMS.
Frequently Asked Questions
What accuracy does the Dwyer AVUL-5DB1-LCD provide?
The AVUL-5DB1-LCD provides 5% of reading accuracy across its field-selectable velocity ranges.
What velocity ranges can the AVUL-5DB1-LCD measure?
It can be configured for 1000, 2000, 3000, or 4000 FPM (5, 10, 15, or 20 m/s).
Does the AVUL-5DB1-LCD support BACnet?
Yes. It communicates through BACnet MS/TP for integration with compatible BACnet-based BMS and control systems.
What is the enclosure rating?
The transmitter has a NEMA 4X (IP66) enclosure rating, suitable for mechanical room and plenum installation.
Does the AVUL-5DB1-LCD have a local display?
Yes. It includes a 5-digit LCD for viewing readings locally during installation and commissioning.
What power supply does the AVUL-5DB1-LCD require?
It operates on 24 VDC or 24 VAC with a maximum current consumption of 60 mA.
What is the difference between the AVUL-5DB1-LCD and AVUL-5DB1?
Both models provide high-velocity air measurement and BACnet MS/TP communication. The AVUL-5DB1-LCD includes a 5-digit LCD, while the AVUL-5DB1 does not have a local display.
Does GeneralTech Shop deliver the AVUL-5DB1-LCD across the UAE?
For availability and delivery information, contact GeneralTech Shop at +971 6 5436933.
