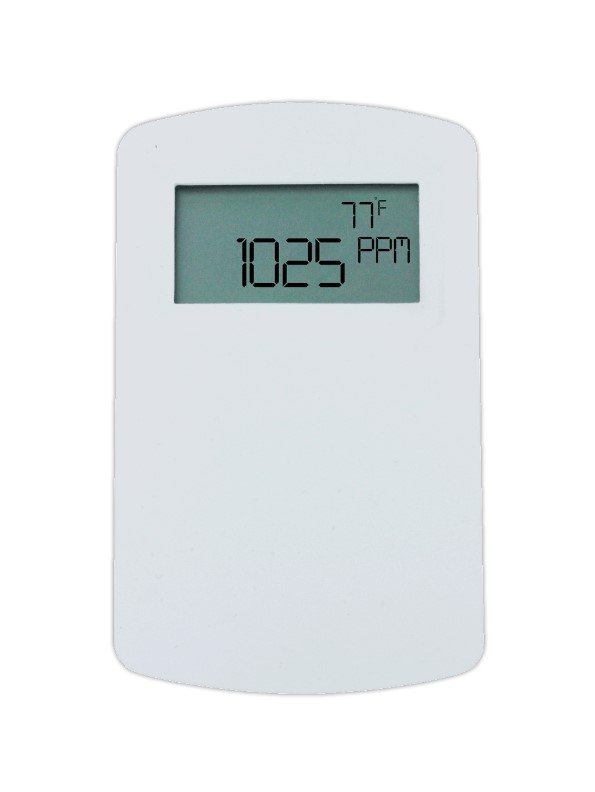

Dwyer Instruments CDT-2E4E | Carbon Dioxide/Temperature | Wall Mount | Universal current/voltage output | Pt1000 RTD Temperature Output | European Housing.
The Dwyer CDT-2E4E is a wall-mount carbon dioxide and temperature transmitter with a European housing, a 0-2000 ppm CO₂ range, universal 4-20 mA, 0-5 VDC or 0-10 VDC CO₂ output and a Pt1000 Ω RTD temperature output. It is designed for indoor CO₂ and temperature monitoring, demand-controlled ventilation and building automation applications. Genuine stock at General Tech Services LLC, UAE, with free UAE-wide shipping. Request a quote in under a minute - call +971 6 5436933.
Part No. CDT-2E4E
Product Overview
The Dwyer Series CDT Carbon Dioxide Transmitters accurately monitor CO₂ concentration and temperature in indoor environments to support ventilation control and energy-saving strategies. The CDT-2E4E is a wall-mount model with a European housing, a 0-2000 ppm CO₂ range and a Pt1000 Ω RTD temperature output.
A single-beam, dual-wavelength NDIR sensor automatically compensates for light-source aging effects in both occupied and unoccupied buildings. The transmitter provides digital barometric pressure adjustment and field calibration capability for accurate measurement.
The CO₂ output is universal and can be selected as 4-20 mA, 0-5 VDC or 0-10 VDC to match the connected controller. Push buttons provide access to the menu structure, while an internal DIP switch can lock the menu to help prevent unwanted changes. Backplate electrical connections simplify installation.
Key Benefits
- Measures CO₂ from 0-2000 ppm and provides temperature through a Pt1000 Ω RTD output.
- Single-beam, dual-wavelength NDIR sensor with a 15-year life expectancy.
- Universal CO₂ output selectable as 4-20 mA, 0-5 VDC or 0-10 VDC.
- Combines CO₂ and temperature measurement in one transmitter.
- Pt1000 Ω RTD temperature output supports compatible HVAC and control systems.
- Lockable push-button menu access helps prevent unwanted configuration changes.
- Digital barometric pressure adjustment supports measurement compensation.
- Field calibration capability simplifies commissioning and maintenance.
- European housing is suited to compatible wall-mount installations.
- Backplate electrical connection simplifies installation.
- Genuine Dwyer stock with free UAE-wide shipping.
Who This Product Is Best For
- Schools, offices and hospitals using demand-controlled ventilation.
- Commercial HVAC and building automation projects requiring CO₂ and temperature monitoring.
- Projects specifying wall-mounted CO₂ sensing with universal analog outputs.
- LEED-oriented ventilation monitoring applications.
- HVAC control systems requiring a Pt1000 Ω RTD temperature signal.
- Installations requiring selectable 4-20 mA, 0-5 VDC or 0-10 VDC CO₂ output.
How to Specify & Commission It
- Confirm the 0-2000 ppm CO₂ range, Pt1000 Ω RTD temperature output and European wall-mount housing are suitable for the application.
- Mount the transmitter according to the installation manual and selected indoor location.
- Wire the power supply and select the required 4-20 mA, 0-5 VDC or 0-10 VDC CO₂ output.
- Connect the Pt1000 Ω RTD temperature output to the appropriate controller input.
- Set the barometric pressure and perform field calibration if required.
- Configure the transmitter menu and lock it with the internal DIP switch if required.
- Verify CO₂ and temperature readings at the connected controller.
Frequently Asked Questions
What does the CDT-2E4E measure?
It measures CO₂ from 0-2000 ppm and provides temperature through a Pt1000 Ω RTD output.
What CO₂ outputs are available?
The CO₂ output is selectable between 4-20 mA, 0-5 VDC and 0-10 VDC.
What type of temperature output does it provide?
The CDT-2E4E provides a Pt1000 Ω RTD temperature output.
How accurate is the CDT-2E4E?
CO₂ accuracy is ±40 ppm + 3% of reading at 2000 ppm. Temperature accuracy is ±1°C at 25°C.
What sensor technology is used?
It uses a single-beam, dual-wavelength NDIR CO₂ sensor with a stated 15-year life expectancy.
Is the CDT-2E4E wall or duct mounted?
The CDT-2E4E is a wall-mount model with a European housing.
Can the sensor be field calibrated?
Yes. The transmitter provides field calibration capability and digital barometric pressure adjustment.
Is genuine stock available with UAE shipping?
Yes. Genuine Dwyer stock is available from General Tech Services LLC, UAE, with free UAE-wide shipping. Call +971 6 5436933 for pricing and current availability.
