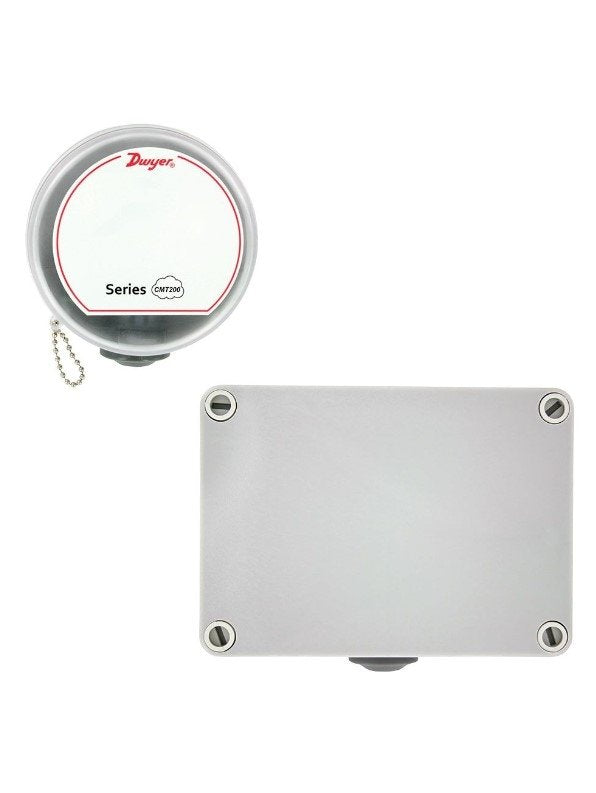

Dwyer Instruments CMT200-R-FC | Carbon monoxide transmitter | 0-200 PPM CO | 4-20 mA/2-10 VDC outputs | Rectangular enclosure | Includes factory calibration certificate
Part No. CMT200-R-FC
Genuine Dwyer Instruments CMT200-R-FC carbon monoxide transmitter, in stock at General Tech Services LLC, UAE. This 0-200 ppm CO transmitter provides a jumper-selectable 4-20 mA or 2-10 V output and uses a field-replaceable electrochemical sensor in a rectangular UV-resistant polycarbonate enclosure. Free UAE-wide shipping. Request a quote in under a minute - call +971 6 5436933.
Product Overview
The Dwyer CMT200-R-FC is a carbon monoxide transmitter designed for monitoring CO concentrations in underground parking garages, vehicle maintenance facilities, mechanical rooms and other applications requiring continuous carbon monoxide detection.
The transmitter measures carbon monoxide from 0 to 200 ppm and provides a field-selectable output of either 4-20 mA or 2-10 V. The output is selected using an internal jumper, allowing the transmitter to interface with a wide range of building automation and control systems.
The CMT200-R-FC uses a field-replaceable electrochemical sensor with a typical lifespan of 4 years. The transmitter is suitable for a typical coverage area of 5,000 to 7,000 ft², depending on the application and installation conditions.
Field calibration is performed using the 15-turn zero and span potentiometers together with the A-507A calibration adapter and the appropriate calibration gas. The rectangular enclosure is made from UV-resistant polycarbonate and includes removable terminal blocks with PG11 and PG16 conduit knockouts.
The -FC version includes a factory calibration certificate. The standard CMT200-R model has the same core electrical and mechanical specification without the factory calibration certificate.
Key Benefits
- 0-200 ppm carbon monoxide measurement range
- Jumper-selectable 4-20 mA or 2-10 V output
- Field-replaceable electrochemical sensor with approximately 4-year typical lifespan
- 15-turn zero and span potentiometers for field calibration
- Typical coverage of 5,000 to 7,000 ft²
- Rectangular UV-resistant polycarbonate enclosure
- Suitable for BAS and building automation CO monitoring
- Factory calibration certificate included with the CMT200-R-FC
- Free UAE-wide shipping on genuine Dwyer Instruments stock
Who This Product Is Best For
- Underground parking garages requiring CO monitoring for ventilation control
- Vehicle maintenance facilities requiring continuous carbon monoxide monitoring
- Mechanical rooms using CO monitoring as part of a building automation system
- Building automation and control integrators requiring selectable analog outputs
- Installations where a field-replaceable electrochemical CO sensor is preferred
How to Specify & Commission It
- Confirm the required 0-200 ppm CO measurement range and select a suitable mounting location within the monitored area.
- Install the transmitter according to the manufacturer's installation requirements, considering the typical 5,000-7,000 ft² coverage guidance.
- Set the output jumper for either 4-20 mA or 2-10 V according to the connected controller or BAS input.
- Connect the 18-28 V supply and selected output to the controller using the removable terminal block.
- If required, perform field calibration using the zero and span potentiometers, A-507A calibration adapter and appropriate calibration gas.
- Verify the CO reading and output signal with the connected control or building automation system.
Frequently Asked Questions
What range does the CMT200-R-FC measure?
The transmitter measures carbon monoxide from 0 to 200 ppm.
What outputs does the CMT200-R-FC provide?
It provides a jumper-selectable 4-20 mA loop-powered output or 2-10 V output.
How long does the sensor typically last?
The field-replaceable electrochemical sensor has a typical lifespan of approximately 4 years, depending on operating conditions and application.
What is the typical coverage area?
The CMT200-R-FC provides a typical coverage area of 5,000 to 7,000 ft², depending on the installation and monitored environment.
What is the accuracy of the CMT200-R-FC?
The specified accuracy is ±2% of reading at the time of calibration.
Can the sensor be replaced?
Yes. The CMT200-R-FC uses a field-replaceable electrochemical carbon monoxide sensor.
How is the transmitter calibrated?
Field calibration is performed using the 15-turn zero and span potentiometers, together with the A-507A calibration adapter and suitable calibration gas.
What does the -FC suffix mean?
The -FC suffix indicates that the transmitter is supplied with a factory calibration certificate. The standard CMT200-R has the same core electrical and mechanical specification without the factory calibration certificate.
Is genuine CMT200-R-FC stock available with UAE shipping?
Yes. Genuine Dwyer Instruments stock is available through General Tech Services LLC, UAE, with free UAE-wide shipping. Call +971 6 5436933 for pricing and current availability.
Request a Quote Today
For pricing, stock availability or to place an order, contact General Tech Services LLC.
Call +971 6 5436933 | www.generaltechshop.ae
