An economical 3" female-NPT hand-lever brass ball valve with a full-port design, rated to 600 psi for commercial and industrial shutoff applications. Request a quote in under a minute - call +971 6 5436933.
Part No.: DBV-09

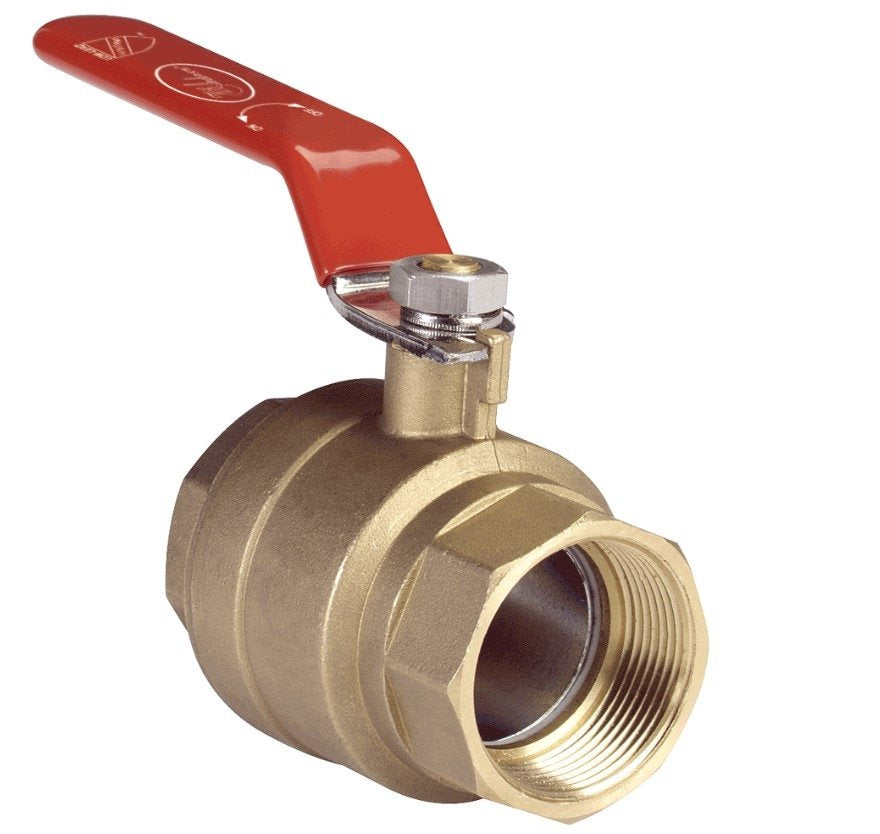

The Dwyer DBV-09 is a hand-lever brass ball valve designed for straightforward manual shutoff in commercial and industrial piping systems. It features 3" female NPT connections on both ends for threaded installation.
The valve uses a brass body, cap, and stem, with PTFE seats and stem packing to provide a durable, low-friction sealing arrangement. Its blowout-proof stem remains captive under overpressure, supporting secure operation during service.
The DBV-09 features a full-port bore that matches the internal diameter of the pipe, helping minimize flow restriction when the valve is fully open. With a maximum pressure rating of 600 psi, it is suitable for general water and process shutoff points where threaded connections are required.
The low-lead brass construction makes the Dwyer DBV-09 a practical choice for contractors and facilities teams looking for an economical 3" NPT shutoff valve.
Need a different specification? The Dwyer range also includes the DBV-08, a 2-1/2" NPT brass ball valve with a 600 psi pressure rating.
Ready to order the DBV-09? Speak to our team. Call +971 6 5436933.
Key Benefits
- 3" female NPT connections on both ends
- Full-port design helps minimize pressure drop when open
- Blowout-proof stem for secure operation under overpressure
- Low-lead brass body with PTFE seats and stem packing
- Rated for pressures up to 600 psi
- Hand-lever operation for straightforward manual shutoff
Who This Product Is Best For
- Contractors installing 3" threaded piping systems
- Facilities teams requiring manual shutoff valves
- Commercial and industrial piping applications
- Water and process shutoff points using threaded connections
- Applications requiring a full-port brass ball valve
How to Use
- Thread the DBV-09 valve into the 3" NPT piping connection using appropriate thread sealant.
- Tighten according to the pipe manufacturer's guidance without over-tightening the brass body.
- Operate the hand lever fully open and closed to confirm smooth movement.
- Check the connection and valve operation before placing the system into service.
Frequently Asked Questions
What connection type does the DBV-09 use?
The DBV-09 uses 3" female NPT connections on both ends.
What is the maximum pressure rating of the DBV-09?
The maximum pressure rating is 600 psi.
Is the DBV-09 a full-port valve?
Yes. Its full-port bore helps minimize flow restriction when the valve is fully open.
What is the DBV-09 made of?
It has a low-lead brass body, cap, and stem, with PTFE seats and stem packing.
What is the operating temperature range of the DBV-09?
The specified operating temperature range is -40° to 365°F (-40° to 185°C).
Does GeneralTech Shop deliver the DBV-09 across the UAE?
Yes. Call +971 6 5436933 to confirm delivery availability and timelines for your emirate.
What is the difference between the DBV-09 and DBV-08?
The DBV-09 uses a 3" NPT connection, while the DBV-08 uses a 2-1/2" NPT connection. Both are part of the same valve range and have a 600 psi pressure rating.
For pricing or to place an order, contact GeneralTech Shop. Call +971 6 5436933.
