Dwyer Instruments DBVL-02 | Brass ball valve | 600 psi | Full port | 1/2"

Name: Dwyer Instruments DBVL-02 | Brass ball valve | 600 psi | Full port | 1/2"
Brand: Dwyer
SKU: DBVL-02
Availability: OutOfStock

Part Number : DBVL-02

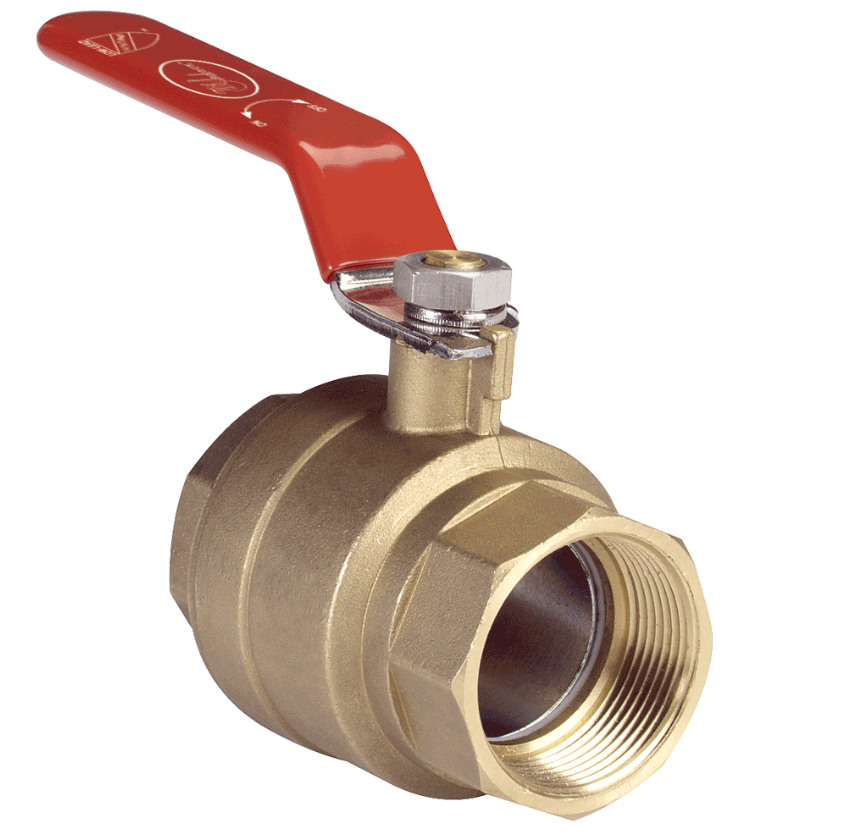

Economical hand lever ball valves perfect for commercial or industrial application are the Model DBVL-02 Brass Ball Valves. High-quality brass is used to create the stem, body cap, and valve body for excellent compatibility and longevity. For enduring use, PTFE was used in the construction of the seats and stem packing. In the case of an overpressure, a blowout-proof stem ensures safety, and the complete port design maximizes flow coefficient while maintaining a low pressure drop.

Availability: Sold out

Free Kuwait shipping available

Specifications
Features
Downloads

Approvals	Meets the technical requirements of EU Directive 2011/65/EU (RoHS II)
Connection	DBVL: 1/4" to 3" female NPT; SWBV: 1/4" to 3" sweat connections
Manufacturer	Dwyer Instruments
Material	Other: Body Gland and Stem Nut: Brass Handle and Handle Nut: Steel Handle Cover: Rubber
Material	Wetted: Body, Body Cap, and Stem: Brass Seat and Packing: PTFE Ball: DBVL: 1/4" to 1": Chrome Plated Brass 1-1/4" to 3": Stainless Steel SWBV: Stainless Steel
Maximum Operating Pressure	1/4" to 2": -29" Hg to 600 psi (-736 mm Hg to 41 bar) WOG; DBVL: 2-1/2" to 3": -29" Hg to 250 psi (-736 mm Hg to 17 bar) WOG; SWBV: 2-1/2" to 3", -29" Hg to 400 psi (-736 mm Hg to 27 psi) WOG
Maximum operating temperature	-40° to 365°F (-40° to 185°C)
Size	Pipe: 1/2"
Type	Brass Ball Valve
