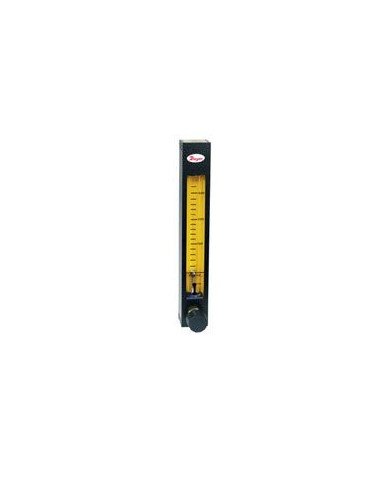

Dwyer DR4203 | High Flow Glass Flowmeter | 0.5-11 SCFM (20-320 SLPM) Air

Part Number : DR4203

The Dwyer DR4203 is a high flow glass flowmeter scaled for 0.5 to 11 SCFM (20 to 320 SLPM) of air, intended for flow indication at larger capacities. The 127 mm direct-reading scale of the DR4203 is read through a 1.5x magnifying lens against a reflective plastic backdrop.

  • Flow range 0.5 to 11 SCFM (20 to 320 SLPM) air, direct reading
  • ±10% FS accuracy and ±0.25% repeatability across the 0.5-11 SCFM (20-320 SLPM) span
  • Fused ceramic scale with integrated float guides on the DR4203
  • 3/8" female NPT connections, rated to 200 psig (13.8 bar) and 250°F (121°C) on the DR4203
  • Borosilicate glass tube and 316 SS float in the DR4203; safety blow-out rear panel
  • Vertical mounting, 10:1 turn-down for the 0.5-11 SCFM (20-320 SLPM) range
Availability: in stock
Free Kuwait shipping available
For pricing, please contact our experts.
