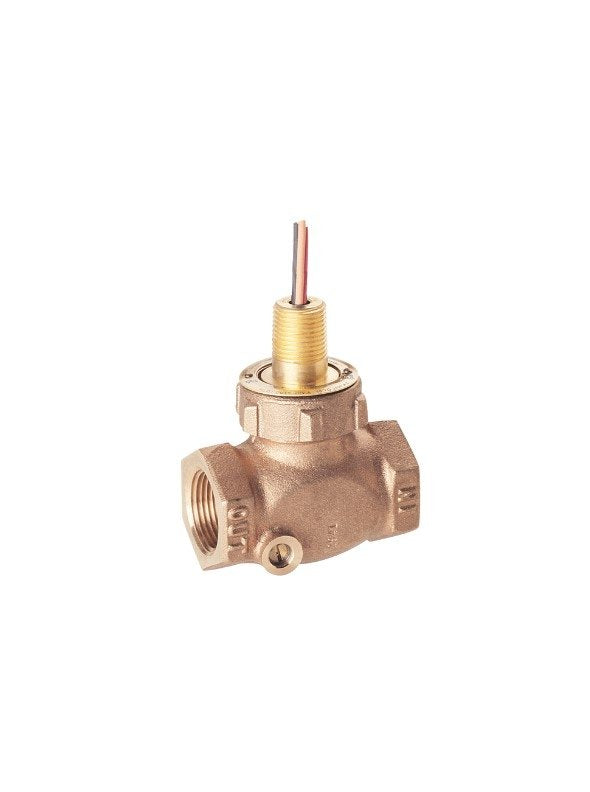

Dwyer GVS-113 | Globe Valve Switch | set point 2.0-8.0 GPM (7.6-30.3 LPM)
The Dwyer GVS-113 globe valve switch senses liquid flow with an actuation set point range of 2.0-8.0 GPM (7.6-30.3 LPM). Its setting is adjusted from outside the body, with 1% maximum deviation on repeat.
- 1" female NPT process connection on the GVS-113
- GVS-113 bronze housing and bonnet with TFE shuttle and 316 SS spring
- SPDT switch on the GVS-113, accuracy ±10%
- GVS-113 rated 400 psig (27 bar) at 100°F (38°C), -20 to 200°F (-29 to 93°C)
- 18 AWG, 24" (61 cm) lead wires; 150 micron filtration recommended for the GVS-113
- Specifications
- Features
- Downloads
| Part Number | GVS-113 |
| Brand | Dwyer |
| Product Type | Globe valve switch |
| Process Connection | 1" female NPT |
| Switch Type | SPDT |
| Weight | 2 lb, 8 oz (1.16 kg) |
| Maximum Pressure | 400 psig (27 bar) @ 100 °F (38 °C) |
| Electrical Connection | 18 AWG, 24" (61 cm) polymeric lead wires |
| Temperature Range | -20 to 200 °F (-29 to 93 °C) |
| Actuation Set Point | 2.0-8.0 GPM (7.6-30.3 LPM) |
| Accuracy | ±10% |
| Wetted Materials | Bronze housing and bonnet; TFE shuttle; 316 SS spring |
| Required Filtration | 150 microns or better |
| Repeatability | 1% maximum deviation |
- Flow set point that is modifiable externally.
- Robust design ensures long-term dependability in both oil and water.
- Low pressure drop is maintained by plenty of room for flow.
