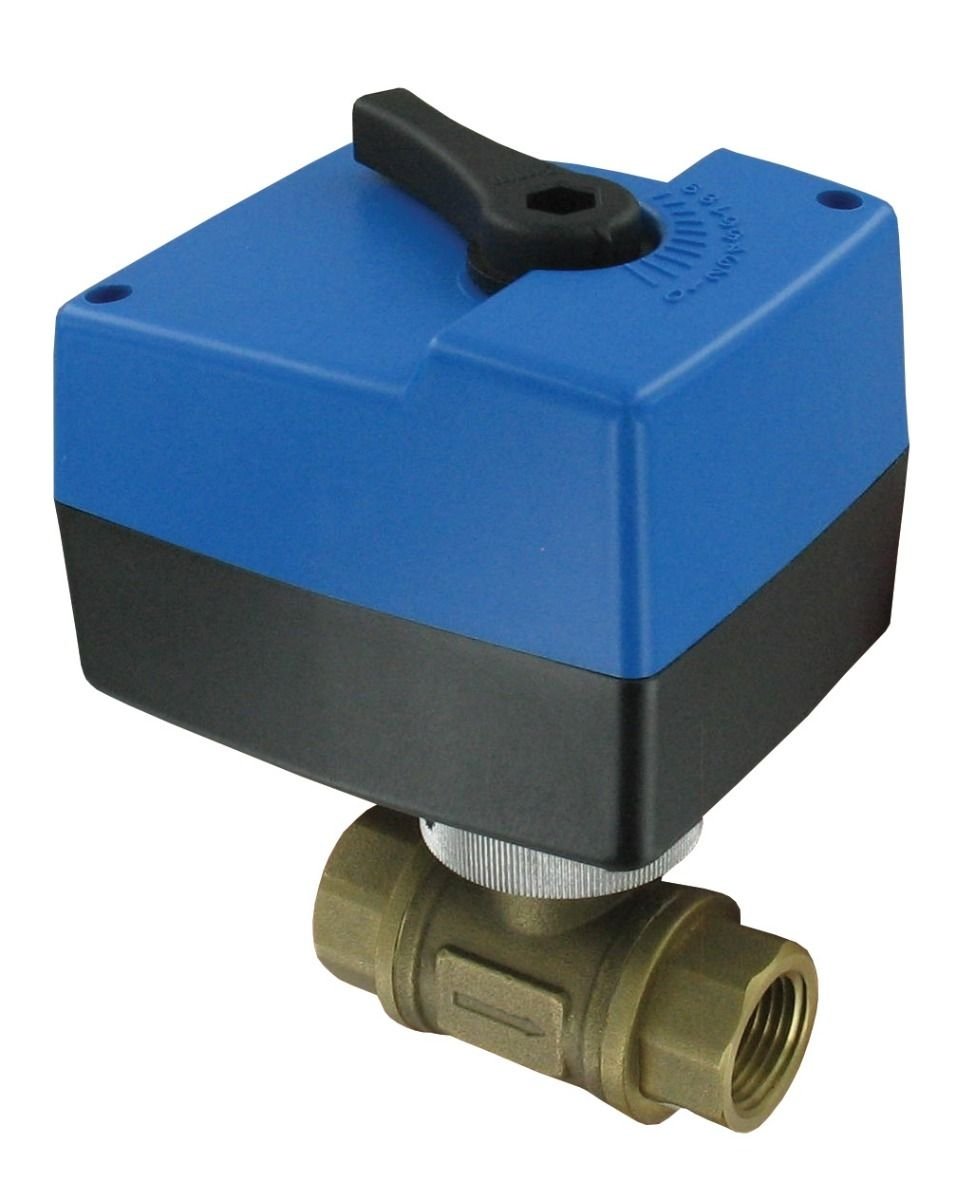

Dwyer Instruments HBAV0413 | 2-Way ball valve | 1" NPT | Floating | 230/240 VAC
The Dwyer HBAV0413 electric ball valve is a motorized 2-way ball valve designed for automated on/off and flow-control applications in HVAC and process systems. It features a 1" NPT connection, floating control, and a 230-240 VAC actuator supply for BMS- or controller-driven operation.
Request a quote in under a minute — call +971 6 5436933.
Part Number: HBAV0413
The Dwyer HBAV0413 combines a stainless steel or brass ball valve body with an electric actuator, replacing manual valve operation with automated control from a building management system (BMS), HVAC controller, or local control system.
It accepts a floating three-point control signal, allowing the actuator to drive the valve open or closed through simple open/close/stop commands. This provides straightforward automated valve sequencing for HVAC and process control systems.
The 230-240 VAC actuator supply is suited to building and industrial control systems where this voltage is available, helping simplify installation without requiring an intermediate transformer or separate power supply for the actuator circuit.
The valve uses a 2-way, full-bore ball design that helps maintain low pressure drop when open. This allows the HBAV0413 to provide automated operation while retaining the flow characteristics associated with Dwyer's manual ball valve range.
The HBAV0413 is also a practical retrofit option for existing manually operated shutoff points. It can support remote or scheduled valve operation through a compatible BMS or controller, making it suitable for both retrofit projects and new HVAC or process control installations.
For applications requiring a different actuator supply voltage, the Dwyer range also includes the HBAV0412, a 1" NPT electric ball valve with floating control and 120 VAC supply.
Key Benefits
- 1" NPT 2-way ball valve with electric actuator
- Floating three-point control for automated open/close/stop operation
- 230-240 VAC actuator supply
- Full-bore ball design helps maintain low pressure drop when open
- Suitable for BMS and HVAC controller integration
- Practical option for automating existing manual shutoff points
- Suitable for HVAC and process control applications
Who This Product Is Best For
The Dwyer HBAV0413 is suited for HVAC contractors, building automation professionals, and process control engineers who need a motorized 2-way ball valve with floating control in a 1" NPT system.
It is particularly useful for BMS-driven valve sequencing, automated shutoff applications, remote operation, scheduled control, and retrofit projects where a manual valve needs to be converted to electric operation.
How to Use
- Install the HBAV0413 in the HVAC or process line using the 1" NPT connection.
- Connect the 230-240 VAC actuator supply according to the installation requirements.
- Connect the floating control signals to the BMS or compatible controller.
- Configure the controller for the required open, close, and stop operation.
- Verify that the valve opens, closes, or stops correctly in response to the control signal before normal operation.
Frequently Asked Questions
What control signal does the HBAV0413 use?
The HBAV0413 uses floating control, also known as three-point open/close/stop control.
What supply voltage does the HBAV0413 require?
The actuator requires a 230-240 VAC supply.
What is the NPT size of the HBAV0413?
The valve has a 1" NPT connection.
Is the HBAV0413 a full-bore valve?
Yes. The HBAV0413 is a 2-way, full-bore ball valve designed to maintain low pressure drop when open.
Can the HBAV0413 replace an existing manual ball valve?
It can be used as a retrofit solution for automating an existing manually operated shutoff point in compatible 1" NPT piping.
Can the HBAV0413 be controlled through a BMS?
Yes. Its floating control configuration allows operation from a compatible BMS, HVAC controller, or local control system.
What is the difference between the HBAV0413 and HBAV0412?
Both models use a 1" NPT connection and floating control, but they differ in actuator supply voltage. The HBAV0413 uses 230-240 VAC, while the HBAV0412 uses 120 VAC.
Does GeneralTech Shop deliver the HBAV0413 across the UAE?
For availability and delivery timelines across the UAE, contact GeneralTech Shop at +971 6 5436933.
Request a Quote
For pricing, availability, or technical assistance for the Dwyer HBAV0413 electric ball valve, contact GeneralTech Shop.
