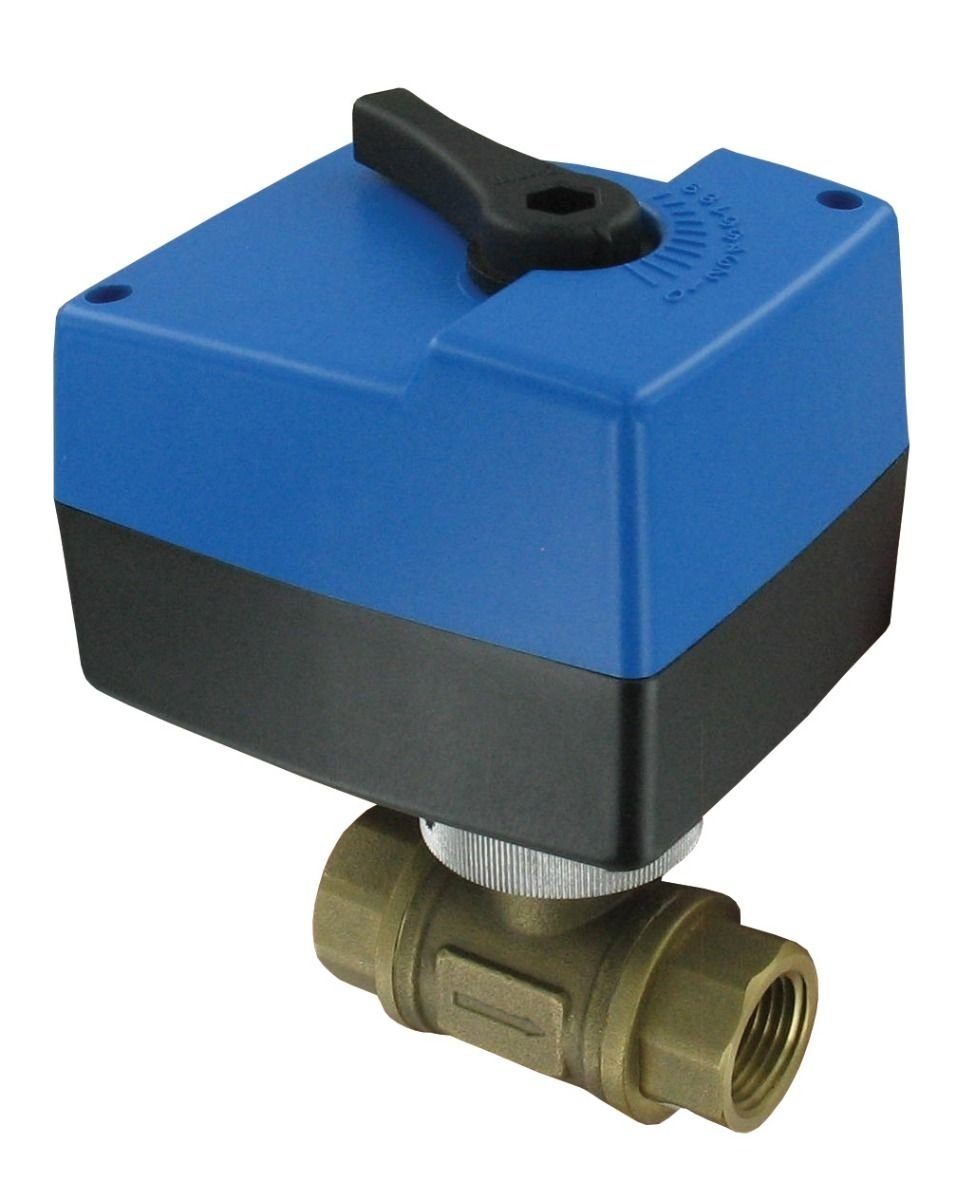

Dwyer Instruments HBAV0414 | 2-Way ball valve | 1" NPT | Floating | 24 VAC
The Dwyer HBAV0414 electric ball valve is a motorized 2-way ball valve designed for automated on/off and flow-control applications in HVAC and process systems. It features a 1" NPT connection, floating control, and a 24 VAC actuator supply for BMS- or controller-driven operation.
Request a quote in under a minute — call +971 6 5436933.
Part Number: HBAV0414
The Dwyer HBAV0414 combines a stainless steel or brass ball valve body with an electric actuator, replacing manual operation with automated control from a building management system (BMS), HVAC controller, or local control system.
It accepts a floating three-point control signal, allowing the actuator to drive the valve open or closed through simple open/close/stop commands. This provides straightforward automated valve sequencing for HVAC and process control systems without requiring a proportional modulating signal.
The 24 VAC actuator supply matches common building automation and industrial control voltages, helping simplify installation where 24 VAC power is already available.
The valve uses a 2-way, full-bore ball design that helps maintain low pressure drop when open. This allows the HBAV0414 to provide automated operation while retaining the flow characteristics associated with Dwyer's manual ball valve range.
The HBAV0414 is also a practical option for retrofit projects where an existing manually operated shutoff point needs to be automated. It can support remote or scheduled valve operation through a compatible BMS or controller, making it suitable for both existing installations and new HVAC or process control systems.
For applications requiring proportional modulating control, the Dwyer range also includes the HBAV0424, a 1" NPT electric ball valve with modulating control and 24 VAC supply.
Key Benefits
- 1" NPT 2-way ball valve with electric actuator
- Floating three-point control for automated open/close/stop operation
- 24 VAC actuator supply
- Full-bore ball design helps maintain low pressure drop when open
- Suitable for BMS and HVAC controller integration
- Practical option for automating existing manual shutoff points
- Suitable for HVAC and process control applications
Who This Product Is Best For
The Dwyer HBAV0414 is suited for HVAC contractors, building automation professionals, and process control engineers who need a motorized 2-way ball valve with floating control in a 1" NPT system.
It is particularly useful for BMS-driven valve sequencing, automated shutoff applications, remote operation, scheduled control, and retrofit projects where a manual valve needs to be converted to electric operation.
How to Use
- Install the HBAV0414 in the HVAC or process line using the 1" NPT connection.
- Connect the 24 VAC actuator supply according to the installation requirements.
- Connect the floating control signals to the BMS or compatible controller.
- Configure the controller for the required open, close, and stop operation.
- Verify that the valve opens, closes, or stops correctly in response to the control signal before normal operation.
Frequently Asked Questions
What control signal does the HBAV0414 use?
The HBAV0414 uses floating control, also known as three-point open/close/stop control.
What supply voltage does the HBAV0414 require?
The actuator requires a 24 VAC supply.
What is the NPT size of the HBAV0414?
The valve has a 1" NPT connection.
Is the HBAV0414 a full-bore valve?
Yes. The HBAV0414 is a 2-way, full-bore ball valve designed to maintain low pressure drop when open.
Can the HBAV0414 replace an existing manual ball valve?
It can be used as a retrofit solution for automating an existing manually operated shutoff point in compatible 1" NPT piping.
Can the HBAV0414 be controlled through a BMS?
Yes. Its floating control configuration allows operation from a compatible BMS, HVAC controller, or local control system.
What is the difference between the HBAV0414 and HBAV0424?
Both models use a 1" NPT connection and 24 VAC supply, but they use different control types. The HBAV0414 uses floating control, while the HBAV0424 uses modulating control.
Does GeneralTech Shop deliver the HBAV0414 across the UAE?
For availability and delivery timelines across the UAE, contact GeneralTech Shop at +971 6 5436933.
