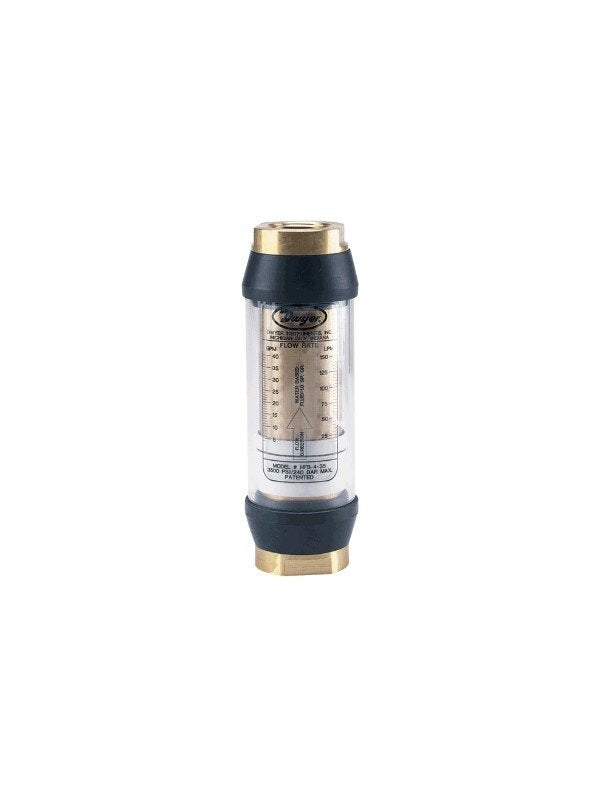

Dwyer HFB-3-15 | In-Line Flow Monitor | 2-15 GPM water, 3/4" female NPT, brass
Part Number : HFB-3-15
Scaled for water at 2-15 GPM (7.5-55 LPM), the Dwyer HFB-3-15 is an in-line flow monitor with 3/4" female NPT connections. Inside the HFB-3-15, a floating orifice disk and ring magnet travel along a tapered central shaft; a magnet follower outside the flow tube indicates the reading.
- Accuracy of the HFB-3-15: ±2% FS; repeatability ±1% FS
- Rated pressure (HFB-3-15): 600 psig (41 bar) gas, 3500 psig (241 bar) liquid
- HFB-3-15 handles up to 240°F (116°C) and viscosities to 500 SSU
- Brass casing on the HFB-3-15, with Buna-N seals, a PTFE-coated Alnico magnet and SS disk
- Shipping weight for the HFB-3-15 is 3.5 lb (1.59 kg)
Free Kuwait shipping available
For pricing, please contact our experts.
