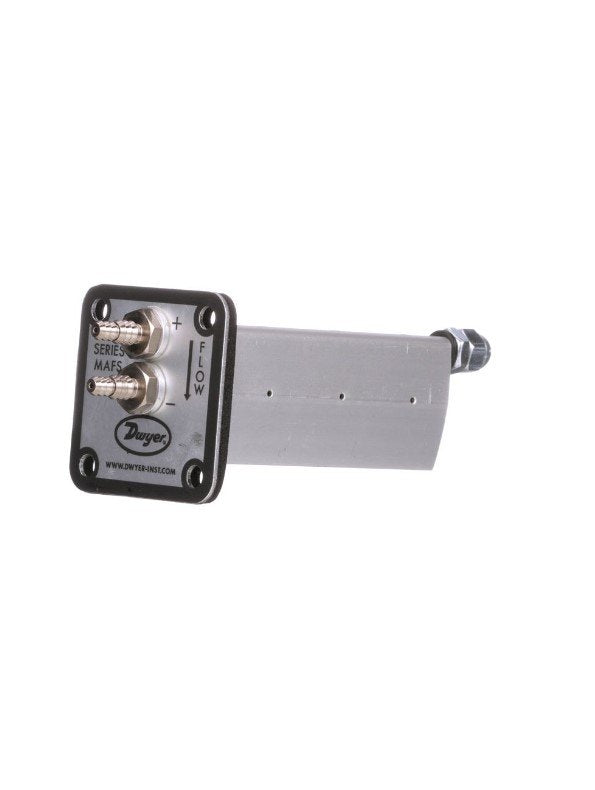

Dwyer MAFS-800MM | Metal Averaging Flow Sensor | 800 mm probe, K-factor 0.81
Part Number : MAFS-800MM
Built as a metal averaging probe, the Dwyer MAFS-800MM (800 mm probe) gives a velocity pressure reading across a duct with a K-factor of 0.81. Equally spaced total and static pressure sensing points on the 800 mm probe make it suitable for connection to Dwyer air velocity instruments.
- Accuracy for the 800 mm probe: ±2% FS from 400 to 9000 FPM (45.7 m/s)
- Design flow 400 to 12,000 fpm (2 to 60.91 m/s) on the 800 mm probe
- Dual barb process connection on the MAFS-800MM for 3/16" or 1/4" ID tubing
- Aluminium AA6063 wetted parts on the MAFS-800MM, rated to 400°F (204°C); gasket -31 to 230°F (-35 to 110°C)
- RoHS II (EU Directive 2011/65/EU) technical requirements met by the MAFS-800MM
