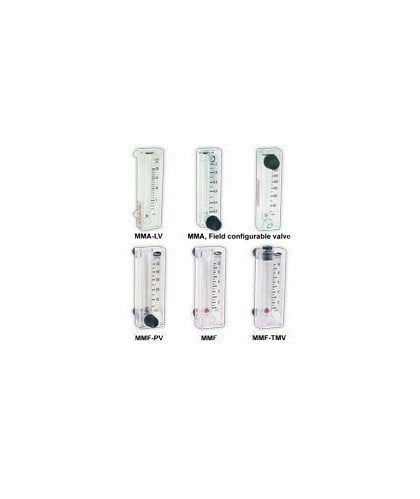

Dwyer MMF-1-TMV | Mini-Master Panel Flowmeter | 0.1-1 SCFH Air
For small air volumes in the 0.1 to 1 SCFH band, the Dwyer MMF-1-TMV offers a 1-1/2" (38 mm) Series MMF Mini-Master scale. The MMF-1-TMV fits by a bezel-style mount from the instrument panel front.
- 0.1 to 1 SCFH of air, direct reading
- 0.1-1 SCFH span read to ±10% of full scale
- MMF-1-TMV: SAN body, polyurethane valve, SS, black glass or nylon float
- Process connection on the MMF-1-TMV: 1/4" OD tubing or double compression fittings
- MMF-1-TMV limits: 50 psi (3.4 bar), 10 psi (0.6 bar) valve option, 125°F (51°C)
- Specifications
- Features
- Downloads
| Part Number | MMF-1-TMV |
| Brand | Dwyer |
| Accuracy | ±10% FS |
| Weight | 0.5 oz (14.17 g) |
| Mounting | Bezel-style, panel front |
| Scale Length | 1-1/2" (38 mm) |
| Max. Operating Pressure | 50 psi (3.4 bar); valve option 10 psi (0.6 bar) |
| Flow Range | 0.1-1 SCFH air |
| Valve | Polyurethane |
| Max. Operating Temperature | 125 °F (51 °C) |
| Connection | 1/4" OD push-on tubing or double compression fittings |
| Body | Styrene acrylonitrile |
| Float Materials | SS, black glass, nylon |
- Easy mounting and inexpensive installation.
- Long operational life and robust design.
- High reproducibility is possible with precision molding.
- The flow tube's white back increases reading accuracy by improving float visibility.
- Time is saved by the immediate flow reading made possible by side printed scale graduations.
- Minimal panel area is needed for compact bodies, freeing up important space.
