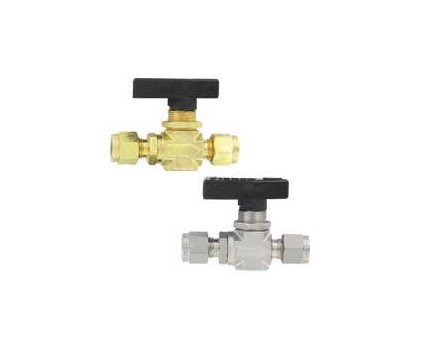

Dwyer Instruments MSV-SD340 | 2-way ball valve | 3/8" fractional tube connection | 6.35 mm orifice
The Dwyer MSV-SD340 is a compact 316 stainless steel 2-way ball valve designed for instrumentation and small industrial fluid systems. It features a 3/8" tube fitting connection, 6.35 mm orifice, microfinished ball, and PTFE seats for reliable shutoff and smooth operation.
Its compact design makes the valve suitable for panel-mounted applications and tight-clearance installations where space is limited. The valve is rated for pressures up to 1500 psig (103 bar) and temperatures from -40° to 350°F.
Part Number: MSV-SD340
Request a quote in under a minute — call +971 6 5436933.
The Dwyer MSV-SD340 is a compact 2-way ball valve designed for fluid shutoff and isolation in instrumentation and industrial systems. Its 316 stainless steel body provides a durable construction for demanding fluid-handling applications.
The valve incorporates a microfinished ball and PTFE seats to provide a reliable seal and smooth operation. Its straight-through flow channel helps minimize pressure drop through the valve, making it suitable for compact process and instrumentation installations.
With a 3/8" tube fitting connection and 6.35 mm orifice, the MSV-SD340 can be integrated directly into compatible tube-fitting panels and process lines. The valve is rated up to 1500 psig (103 bar) and operates across a temperature range of -40° to 350°F.
For applications requiring a smaller tube connection, the Dwyer MSV-SD220 provides a compact 2-way configuration with a 1/4" tube fitting, 316 stainless steel body, and 3.18 mm orifice.
Ready to order the MSV-SD340? Speak to our team. Call +971 6 5436933.
Key Benefits
- Compact 2-way design for shutoff and isolation applications
- 3/8" tube fitting connection
- 6.35 mm orifice
- 316 stainless steel body
- Microfinished ball and PTFE seats for smooth, reliable operation
- Straight-through flow channel helps minimize pressure drop
- Rated up to 1500 psig (103 bar)
- Operating temperature range of -40° to 350°F
- Suitable for panel-mounted and tight-clearance installations
Who This Product Is Best For
The Dwyer MSV-SD340 is suitable for instrumentation and controls technicians, process engineers, and industrial maintenance teams who require a compact 316 stainless steel ball valve with a 3/8" tube fitting connection.
It is particularly useful for panel-mounted systems, instrumentation assemblies, process lines, and applications where installation space is limited.
How to Use
- Install or connect the MSV-SD340 at the required isolation point using its 3/8" tube fitting connection.
- Verify that the valve and connected tubing are correctly installed before commissioning.
- Check that the operating conditions remain within the valve's rated pressure and temperature limits.
- Cycle the valve fully open and closed to confirm smooth operation.
- Place the valve into service once the installation has been inspected and verified.
Frequently Asked Questions
What material is the Dwyer MSV-SD340 body?
The valve body is made from 316 stainless steel.
What connection does the MSV-SD340 use?
The MSV-SD340 uses a 3/8" tube fitting connection.
What is the orifice size of the MSV-SD340?
The valve has a 6.35 mm orifice.
What is the maximum pressure rating?
The MSV-SD340 is rated for a maximum pressure of 1500 psig (103 bar).
What is the operating temperature range?
The specified operating temperature range is -40° to 350°F.
Why choose a compact valve like the MSV-SD340?
Its compact construction is suitable for instrument panels and tight process installations where available space is limited.
What is the difference between the MSV-SD340 and MSV-SD220?
Both are compact 2-way ball valves in the same product family. The MSV-SD340 uses a 3/8" tube fitting and 6.35 mm orifice, while the MSV-SD220 uses a 1/4" tube fitting and 3.18 mm orifice. Selection should be based on the tubing requirements of the application.
Does GeneralTech Shop deliver the MSV-SD340 across the UAE?
For UAE availability and delivery timelines, contact GeneralTech Shop at +971 6 5436933.
