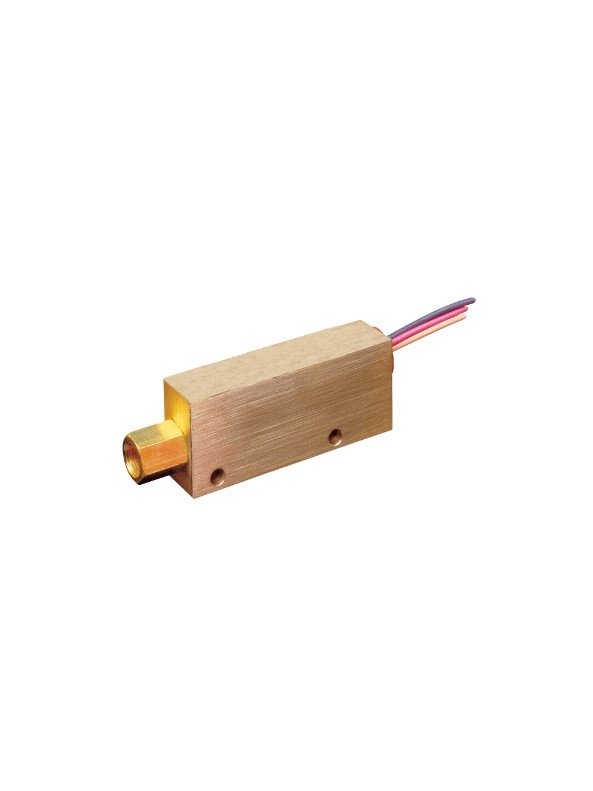

Dwyer P1-013 | Brass Flow Switch | set point 0.50 GPM (1.89 LPM)
Dwyer P1-013 is a brass piston-type flow switch with an actuation set point of 0.50 GPM (1.89 LPM), calibrated for water at standard conditions. It detects excessive or insufficient liquid flow through a 1/4" female NPT connection.
- Brass housing, polysulfone piston and 316 SS spring
- SPDT switch; accuracy ±10% of set point, repeatability ±1%
- Rated to 1000 psig (68.9 bar) and -20 to 225°F (-29 to 107°C)
- 18 AWG, 24" (60.96 cm) polymeric lead wires
- Mounts in any position; 50 micron filtration recommended
- Specifications
- Features
- Downloads
| Part Number | P1-013 |
| Brand | Dwyer |
| Product Type | Brass flow switch |
| Process Connection | 1/4" female NPT |
| Switch Type | SPDT |
| Weight | 0.66 lb (301 g) |
| Maximum Pressure | 1000 psig (68.9 bar) |
| Electrical Connection | 18 AWG, 24" (60.96 cm) polymeric lead wires |
| Temperature Range | -20 to 225 °F (-29 to 107 °C) |
| Actuation Set Point | 0.50 GPM (1.89 LPM), water at standard conditions |
| Accuracy | ±10% of set point |
| Wetted Materials | Brass housing; polysulfone piston; 316 SS spring |
| Required Filtration | 50 microns or better |
| Repeatability | ±1% |
- Low flow rates can be accurately detected with piston-type operation.
- A hermetically sealed SPST reed switch is magnetically activated by the piston.
