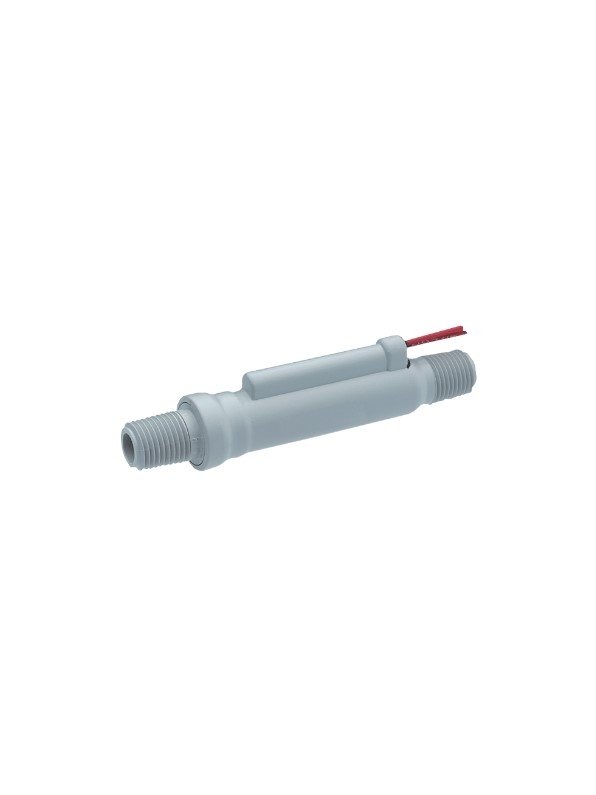

Dwyer P2-12 | Flow Switch for Liquids | set point .25 GPM (.95 LPM)
With an actuation set point of .25 GPM (.95 LPM), the Dwyer P2-12 is a small piston flow switch for liquids. Its piston carries a hermetically sealed SPST magnetic reed switch, suited to pure water service.
- P2-12 housing and piston in PPE & PS, with 316 SS spring and stop pin
- FDA compliant wetted parts on the P2-12
- 1/4" female NPT process connection; P2-12 22 AWG, 18" (45.7 cm) PVC leads
- P2-12 rated 150 psi (10.3 bar) at 70°F (21°C), 0 to 212°F (-18 to 100°C)
- Used in heat exchangers, cooling, filter life monitoring and pure water equipment (P2-12)
- Specifications
- Features
- Downloads
| Part Number | P2-12 |
| Brand | Dwyer |
| Product Type | Flow switch for liquids |
| Process Connection | 1/4" female NPT |
| Switch Type | SPST, N.O. reed |
| Weight | 2 oz (.06 kg) |
| Electrical Rating | .17 A @ 120 VAC, .13 A @ 120 VDC |
| Maximum Pressure | 150 psi (10.3 bar) @ 70 °F (21 °C) |
| Electrical Connection | 22 AWG, 18" (45.7 cm) PVC lead wires |
| Temperature Range | 0 to 212 °F (-18 to 100 °C) |
| Actuation Set Point | .25 GPM (.95 LPM) |
| Wetted Materials | PPE & PS housing and piston; 316 SS spring and stop pin |
| Required Filtration | 50 microns or better |
- A hermetically sealed SPST magnetic reed switch is incorporated into the piston design.
- Every part that is moist is FDA compliant.
- Economical design.
