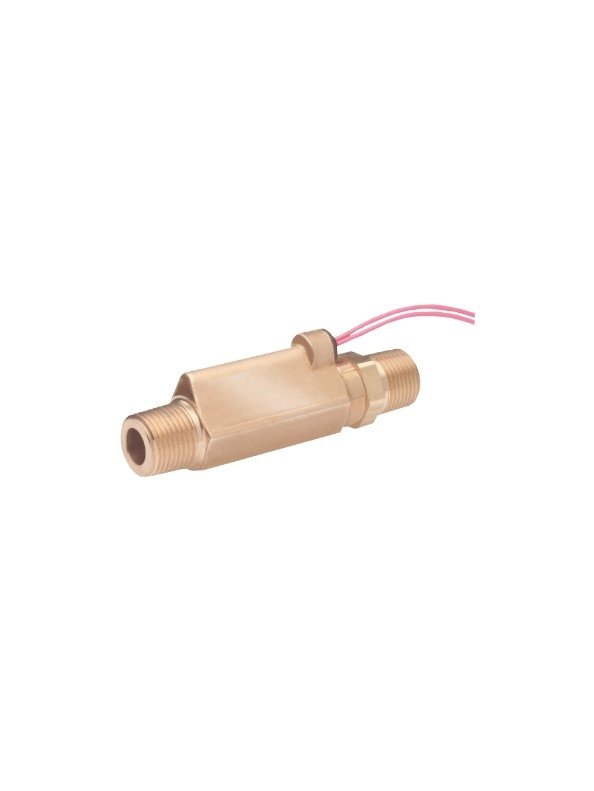

Dwyer P8-15 | High Pressure Flow Switch | set point 2.0 GPM (7.57 LPM), 1500 psi
Dwyer P8-15: brass flow switch for high pressure liquid lines, actuation set point 2.0 GPM (7.57 LPM). The P8-15 withstands up to 1500 psi (103.4 bar).
- P8-15 brass housing, PPS composite piston, 316 SS spring
- 3/8" male NPT process connection; P8-15 22 AWG, 24" (61 cm) leads
- SPST, N.O. switch; P8-15 accuracy ±20% of set point
- P8-15 temperature range -20 to 275°F (-28 to 135°C)
- Any mounting position; 100 micron filtration recommended for the P8-15
- Specifications
- Features
- Downloads
| Part Number | P8-15 |
| Brand | Dwyer |
| Product Type | High pressure brass flow switch |
| Process Connection | 3/8" male NPT |
| Switch Type | SPST, N.O. |
| Weight | 6 oz (.17 kg) |
| Maximum Pressure | 1500 psi (103.4 bar) |
| Electrical Connection | 22 AWG, 24" (61 cm) polymeric leads |
| Temperature Range | -20 to 275 °F (-28 to 135 °C) |
| Actuation Set Point | 2.0 GPM (7.57 LPM) |
| Accuracy | ±20% of set point |
| Wetted Materials | Brass housing; PPS composite piston; 316 SS spring |
| Required Filtration | 100 microns or better |
- Combines a single-piece magnetic PPS composite piston with a 1500 psi maximum pressure handling capability.
- Less prone to blockage than other high-pressure in-line switches using filtering down to the 100 micron level.
