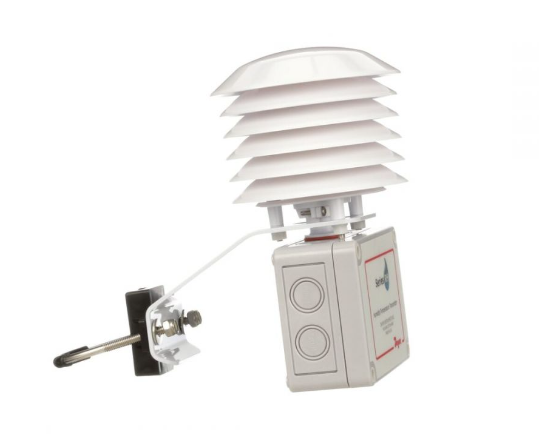

Dwyer RHP-2D2A | Duct Mount RH/Temperature Transmitter | 2% RH, 0-10 VDC RH, 10K Curve A Thermistor Output
The Dwyer RHP-2D2A is a 2% duct mount RH/temperature transmitter with a 0-10 VDC humidity output and a 10K Curve A passive thermistor temperature output. This 0-10 VDC, 10K Curve A passive thermistor version is powered from 15-35 VDC or 15-29 VAC and uses a capacitance polymer sensing element with a 15 second response.
- Optional 2-line, 8-character LCD; compensated from -4 to 140°F (-20 to 60°C)
- Wiring via removable screw terminals
- CE marked; 0-10 VDC RH output
- Passive temperature element: 10K Curve A thermistor
- Thermistor rated ±0.2°C @ 25°C
- Specifications
- Features
- Downloads
| Part Number | RHP-2D2A |
| Brand | Dwyer |
| Power | 15-35 VDC or 15-29 VAC |
| Response Time | 15 s |
| Drift | <1% RH/year |
| Mounting | Duct |
| Temperature Output | 10K Curve A thermistor (passive) |
| Enclosure Rating | NEMA 4X (IP66), housing |
| Output | 0-10 VDC (RH) |
| Approvals | CE |
| RH Accuracy Class | 2% |
| Thermistor Accuracy | ±0.2 °C @ 25 °C (±0.36 °F @ 77 °F) |
| Sensor | Capacitance polymer |
| Compensated Range | -4 to 140 °F (-20 to 60 °C) |
- Lower installation costs when temperature and humidity are combined.
- With 2%, 3%, and 5% accuracy and a wide range of temperature sensors, there is a wide application environment.
- Lower system operating costs thanks to the radiation barrier that shields the sensor from heat radiation.
