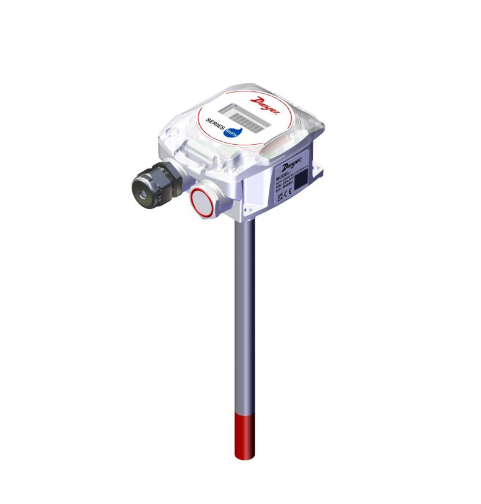

Dwyer RHPX-2SDA0-00-LCD | Duct Humidity/Temperature Transmitter | ±2% RH, Small Enclosure, Analog, LCD

Part Number : RHPX-2SDA0-00-LCD

Dwyer RHPX-2SDA0-00-LCD is a Series RHPX duct transmitter in the small enclosure, rated ±2% (10 to 90% RH @ 25°C) with field-selectable analog outputs and a two-line, eight-character LCD. The RHPX-2SDA0-00-LCD suits building management in commercial HVAC, clean rooms, data centres and museums.

  • LCD version: operating range -20 to 60°C (-4 to 140°F), storage -30 to 70°C on the RHPX-2SDA0-00-LCD
  • Humidity and temperature outputs: 4-20 mA, 0-5 V DC or 0-10 V DC at 5 mA max, field selectable (RHPX-2SDA0-00-LCD)
  • RHPX-2SDA0-00-LCD: Analog power: 10 to 35 VDC for 4-20 mA; 15 to 35 VDC or 15 to 29 VAC for voltage output
  • IP66 enclosure in UL 94 V-0 material; duct version weighs 198.4 g (0.44 lb) on the RHPX-2SDA0-00-LCD
