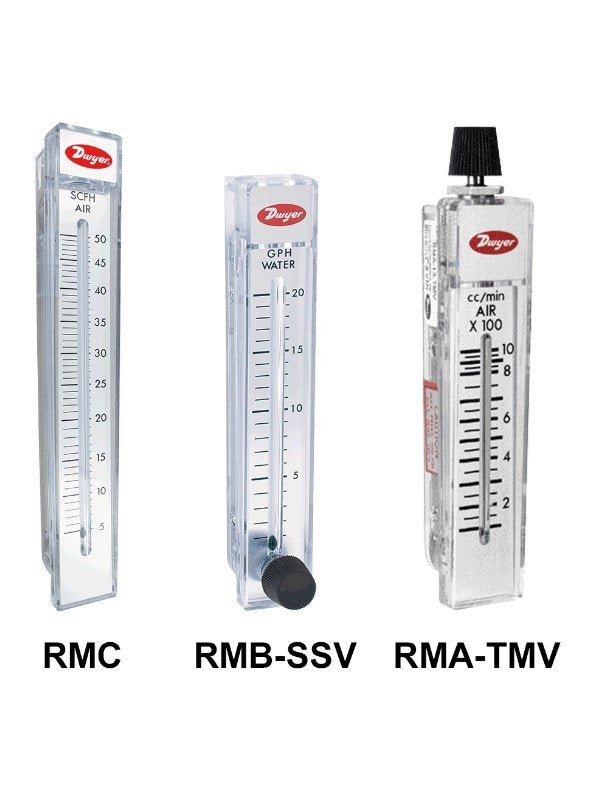

Dwyer RMC-121-SSV | Rate-Master Flowmeter | 1-10 SCFM Air, SS Valve
Dwyer RMC-121-SSV is a Rate-Master direct-reading flowmeter scaled 1-10 SCFM of air, built with a stainless steel valve on a 10" scale. The RMC-121-SSV suits general-purpose air flow indication and can be surface or panel mounted.
- Accuracy of 2% across the 1-10 SCFM air scale
- Wetted parts on the RMC-121-SSV: polycarbonate body, neoprene/Buna-N O-rings, SS metal parts
- RMC-121-SSV pipes in through 1/2" female NPT ports
- RMC-121-SSV limits: 100 psi (6.9 bar), 130°F (54°C); weight 39 oz (1105.6 g)
- Body of the RMC-121-SSV can be exchanged within its scale size, so ranges change and cleaning is done with the pipework left in place
- RMC-121-SSV meets the technical requirements of EU Directive 2011/65/EU (RoHS II)
- Specifications
- Features
- Downloads
| Part Number | RMC-121-SSV |
| Brand | Dwyer |
| Series | Rate-Master |
| Accuracy | 2% |
| Weight | 39 oz (1105.6 g) |
| Process Connection | 1/2" female NPT |
| Wetted Materials | Polycarbonate body; neoprene and Buna-N O-rings; SS metal parts; float material depends on range |
| Approvals | EU Directive 2011/65/EU (RoHS II) |
| Range | 1-10 SCFM air |
| Scale | 10" |
| Valve | Stainless Steel Valve |
| Maximum Pressure | 100 psi (6.9 bar) |
| Maximum Temperature | 130 °F (54 °C) |
- Direct reading scales remove the need for difficult conversions.
- Because the stainless steel backbone absorbs pipe torque, installation damage and costs are reduced.
- Long operational life and a sturdy, non-breakable polycarbonate body.
- Precision injection molding around a precisely tapered pin allows for high reproducibility.
- Improved precision of reading because to unique integrated flow guides that control float movement.
- With the ability to read flow instantly from scale graduations on both sides of the indicating tube, you can save time.
