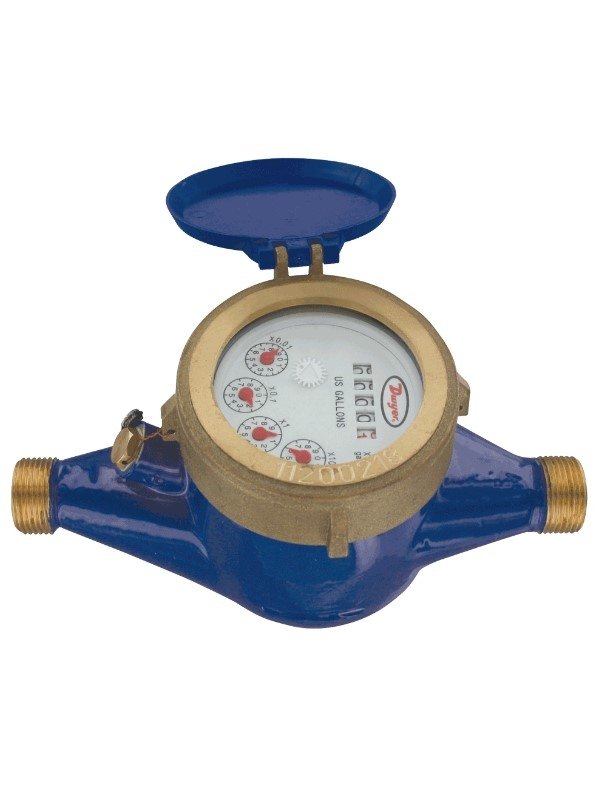

Dwyer WMT2-B-C-14-10 | Brass Multi-Jet Water Meter | 2" BSPT (50mm), 10 L/pulse

Part Number : WMT2-B-C-14-10

Sized for 2" BSPT (50mm) pipework, the WMT2-B-C-14-10 from Dwyer is a brass multi-jet water meter whose pulse signal comes from a reed switch and tracks flow rate. The WMT2-B-C-14-10 register totalises consumption in gallons or m³, while the 10 L/pulse output feeds counters or controllers.

  • WMT2-B-C-14-10 flow ratings: nominal flow 1.2 to 15 m³/h, maximum 30 m³/h, transitional 0.3 m³/h
  • Accuracy of the WMT2-B-C-14-10: ±2% nominal flow, ±5% transitional flow
  • Rated to 232 psi (16 bar) and 104°F (40°C) maximum (WMT2-B-C-14-10)
  • Brass and polyethylene body, brass couplings on the WMT2-B-C-14-10
  • Pulse wiring on the WMT2-B-C-14-10: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
  • Install the WMT2-B-C-14-10 horizontally with the register facing up
