Dwyer Instruments WNT-A-C-01 | Multi-Jet water meter | 5/8" x 1/2" pipe size | NSF Certified | Brass body with 0.1 gal pulse output - generaltechuae

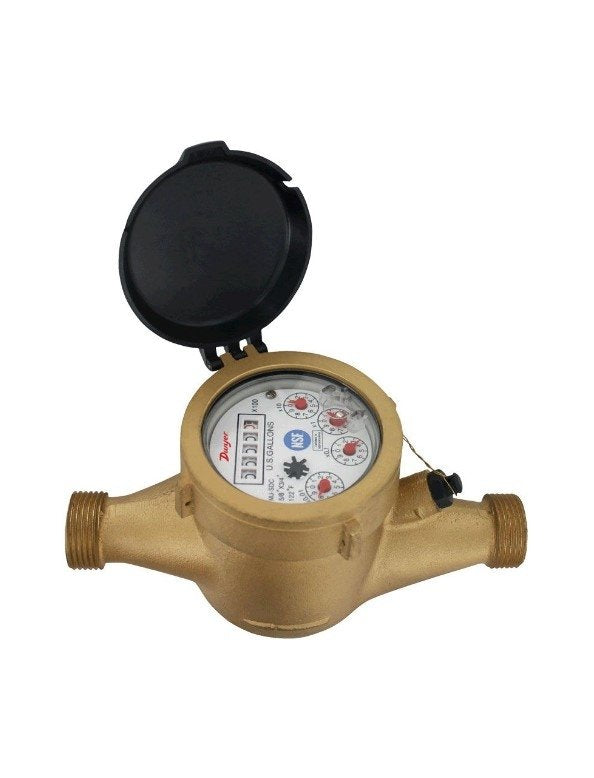

Dwyer WNT-A-C-01 | Lead-Free Brass Multi-Jet Water Meter | 5/8" x 1/2", 0.1 gal/pulse, NSF

Part Number : WNT-A-C-01

Dwyer model WNT-A-C-01 pairs a 5/8" x 1/2" connection with a 0.1 gal/pulse output for remote totalising. This 5/8" x 1/2" meter is NSF certified, with a lead-free body for potable water and records volume in gallons or cubic metres.

  • WNT-A-C-01 flow ratings: nominal flow 1 to 20, maximum 20, transitional 0.25
  • Accuracy of the WNT-A-C-01: ±1.5% nominal flow, ±3% transitional flow
  • Rated to 150 psi (10 bar) and 122°F (50°C) maximum (WNT-A-C-01)
  • ECO BRASS® body and couplings, ABS measuring chamber on the WNT-A-C-01
  • Pulse wiring on the WNT-A-C-01: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
  • WNT-A-C-01 weighs 3.58 lb (1.63 kg)
Availability: in stock
Free Kuwait shipping available
For pricing, please contact our experts.
